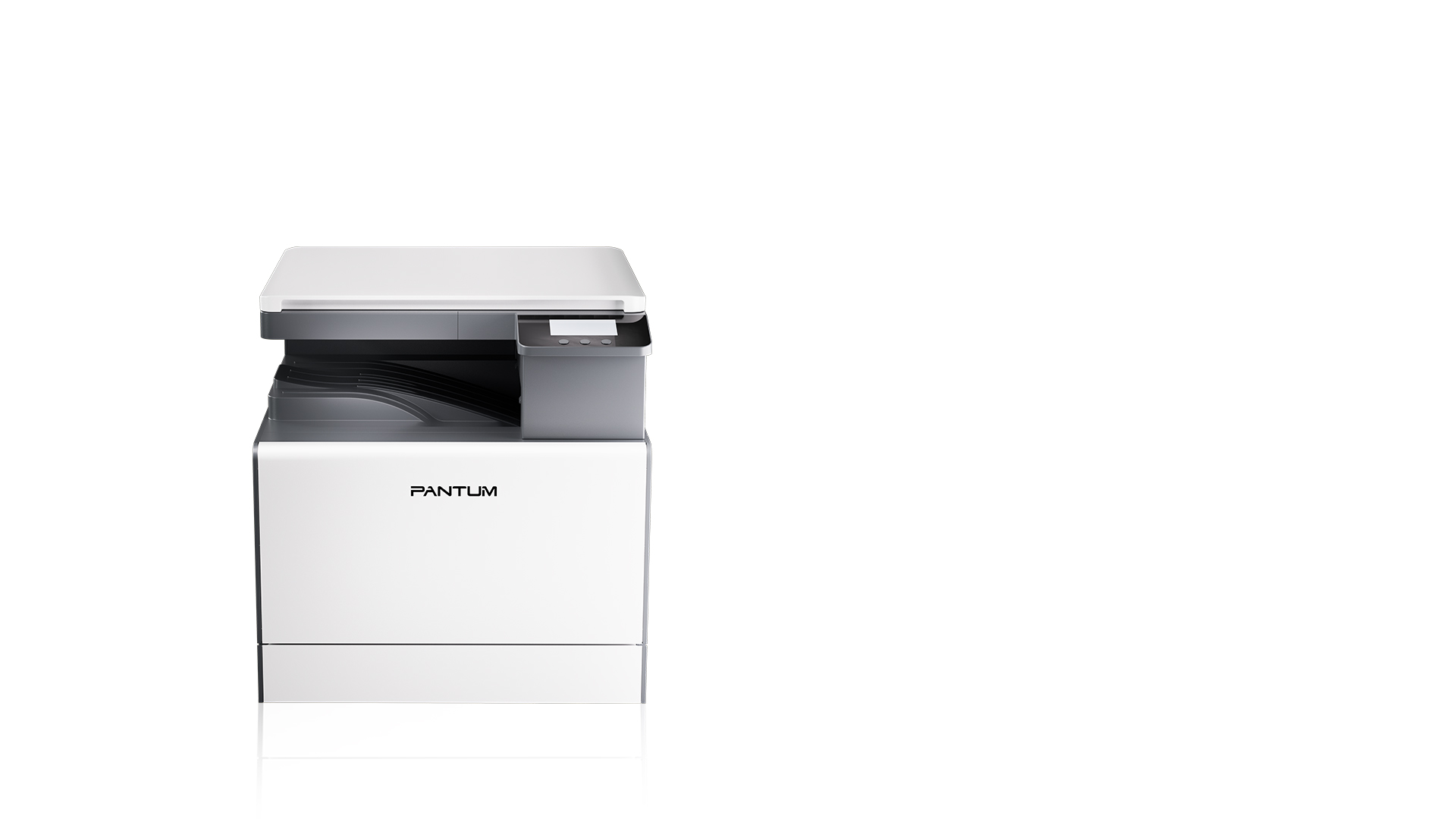

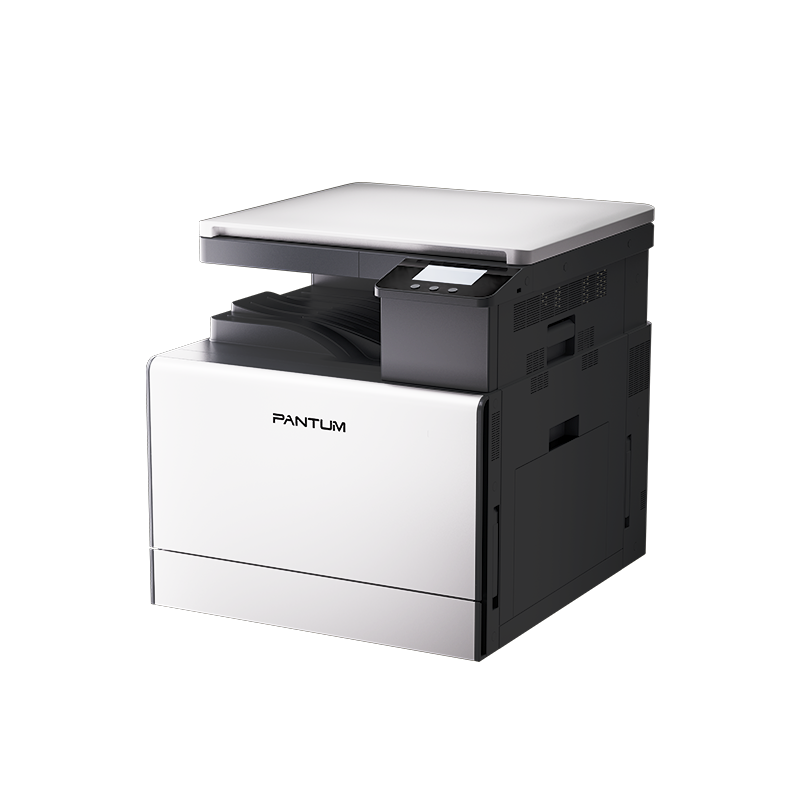

CM230DN Color multifunction printer - Utility Series

Printing speed：25ppm
Connection method: USB+NET
Basic function: Print、Copy、Scan
Print format：A3
Printer language：PCL6/PS3/PDF
Special function：
-Usb disk printing/scanning、Password printing
-USB 3.0
-IEEE 802.3 10/100/1000Base-Tx
-Smart Security Print and network security protection
-4.3-inch touch screen， customizable touch screen interface
-Automatic duplex printing
Other Product：

Select a product

CM230ADN

Product Brochure

Driver Download

Mobile Apps

FEATURES DETAILS CONSUMABLES SIMILAR PRODUCTS

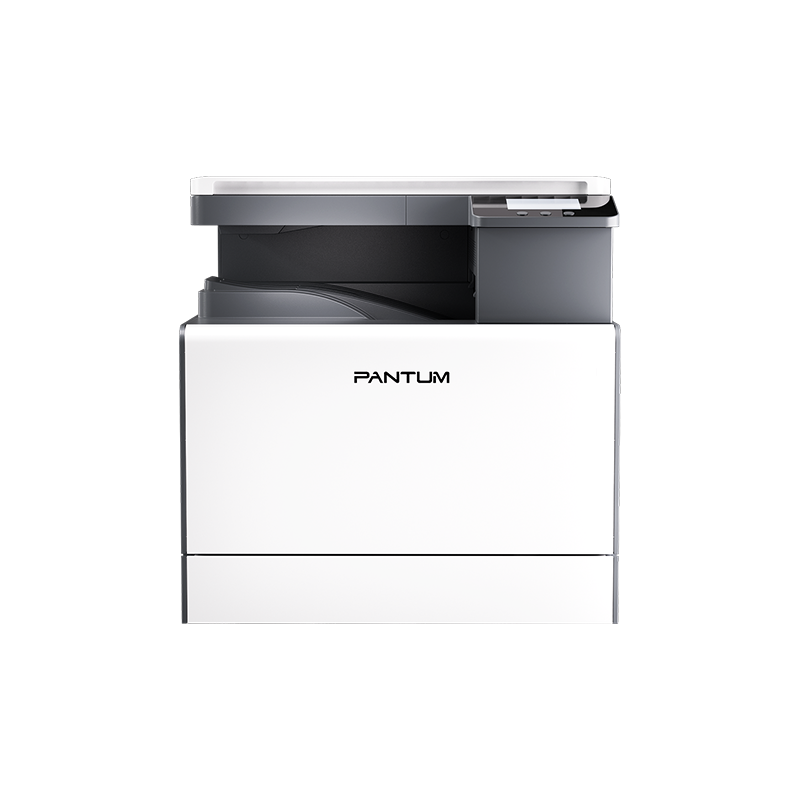

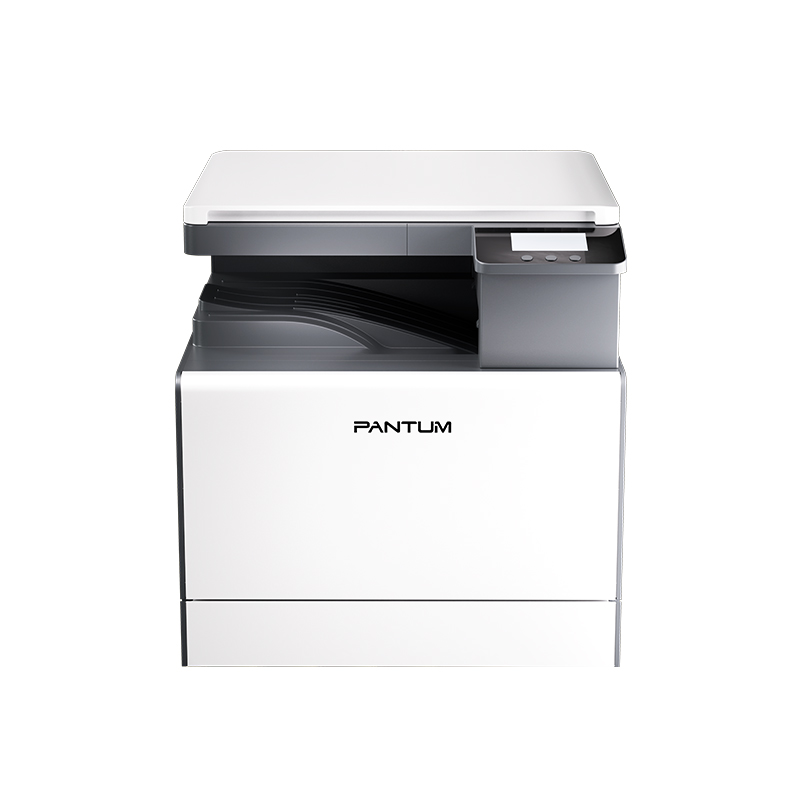

CM230DN

COST-EFFECTIVE AND PRACTICAL

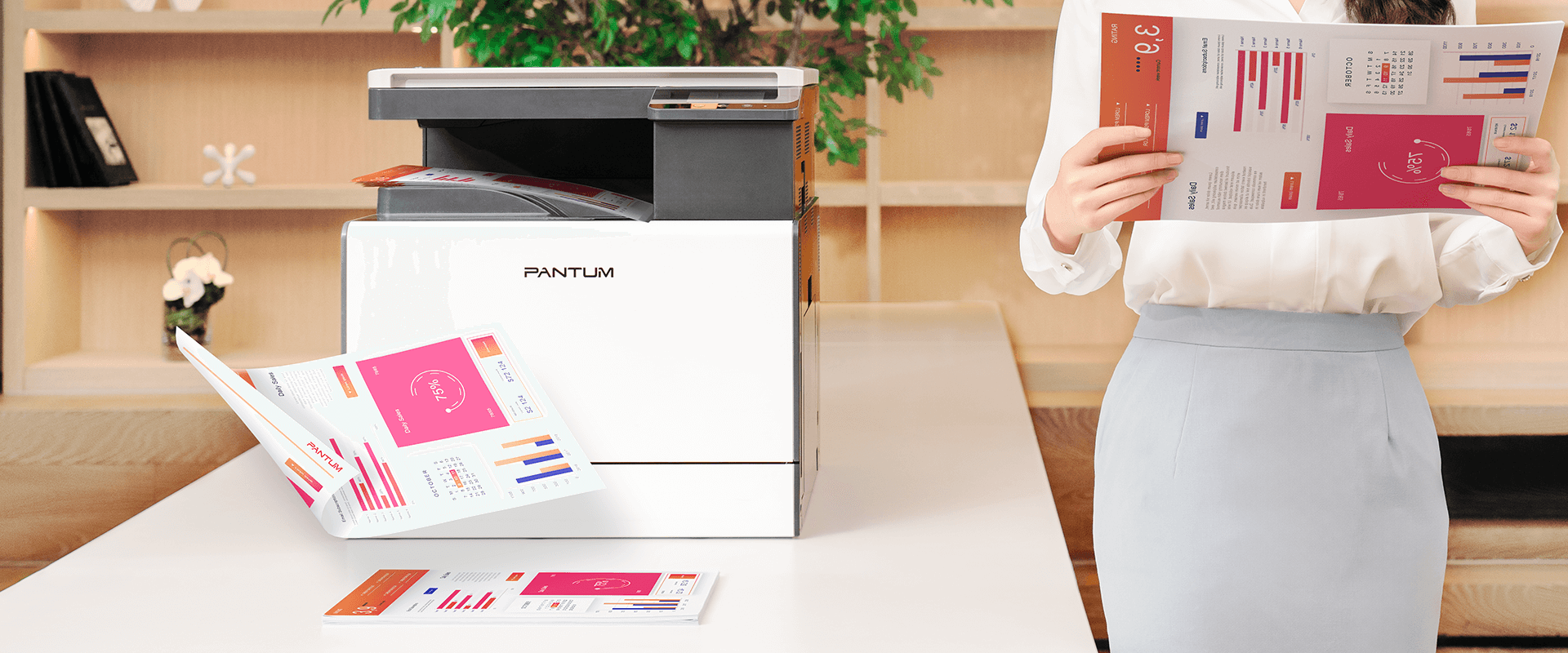

Boost Office Efficiency with High-Speed A3 Color Printing

The printing speed and copy speed can up to 25ppm, full color output let your business looks more professional, beautiful and brighter.
Up to A3 size can satisfy the usage scenarios and needs of more users.

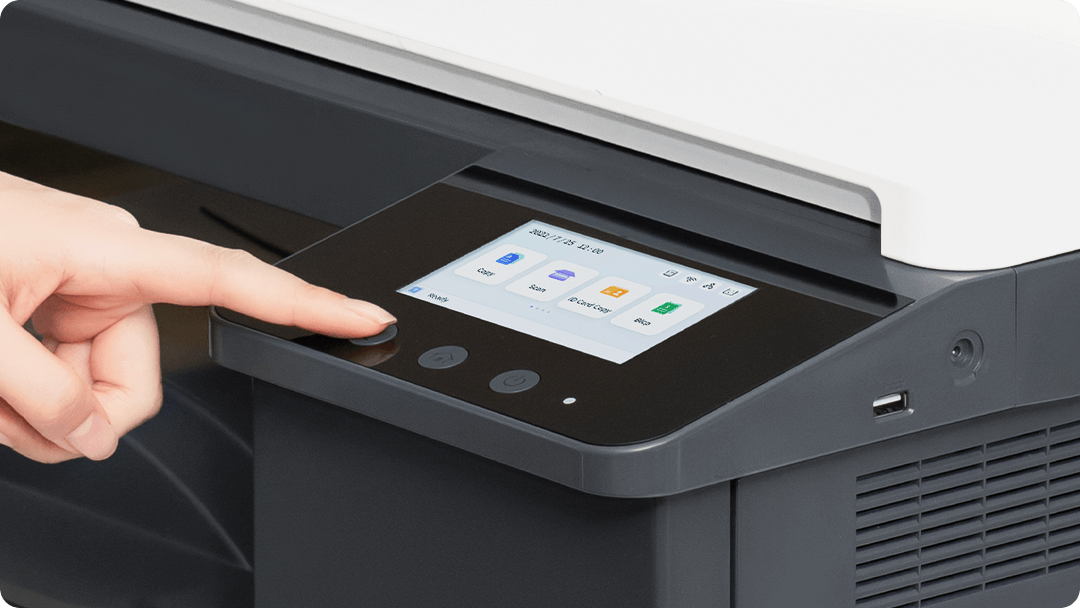

Smart, Customizable Touch Screen Interface

Enjoy effortless control with the 4.3-inch color touch screen.
The customizable interface means each user can tailor the functions to their needs, enhancing productivity and reducing operational complexity.
This smart UI ensures a smooth and user-friendly experience, particularly beneficial for offices with diverse teams and varying print needs.

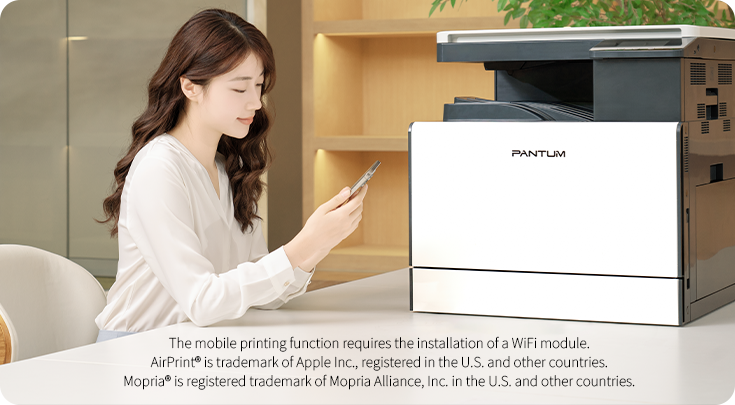

: Mobile Printing Made Easy

Support AirPrint®, Mopria®, and the Pantum APP, allowing seamless integration with your mobile devices for efficient, on-the-go printing. Ensure you can stay productive and responsive in any situation.

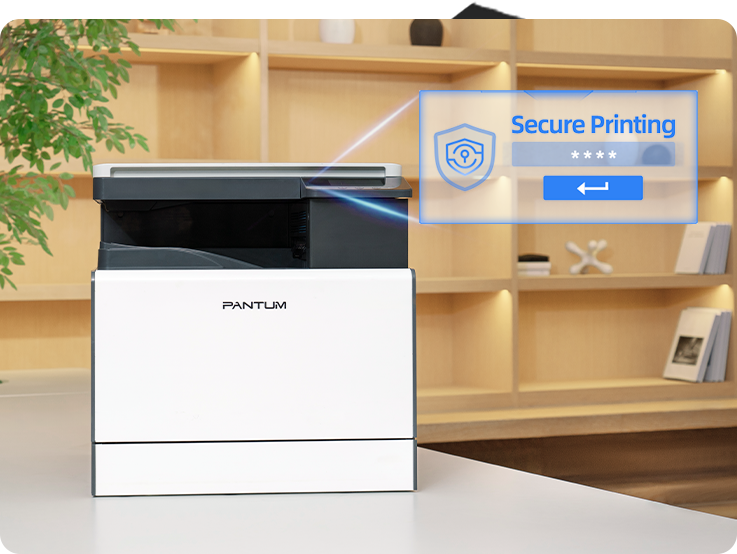

Secure Documents with Confidential Printing

Protect sensitive information with the secure printing feature, verified by authoritative vulnerability scanning tools.
This ensures that all confidential documents remain safe from unauthorized access, which is crucial for businesses handling sensitive data.

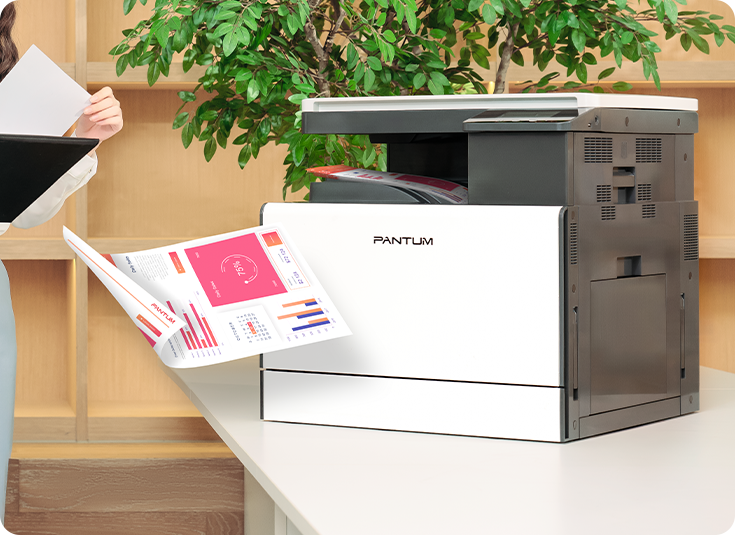

: Improved Efficiency with Versatile Paper Handling

Equipped with a 250-page standard tray and a 100-page multipurpose tray. With a maximum total capacity of 1450 pages, your team can manage large print jobs with ease.

Customizable Options to Meet Your Needs

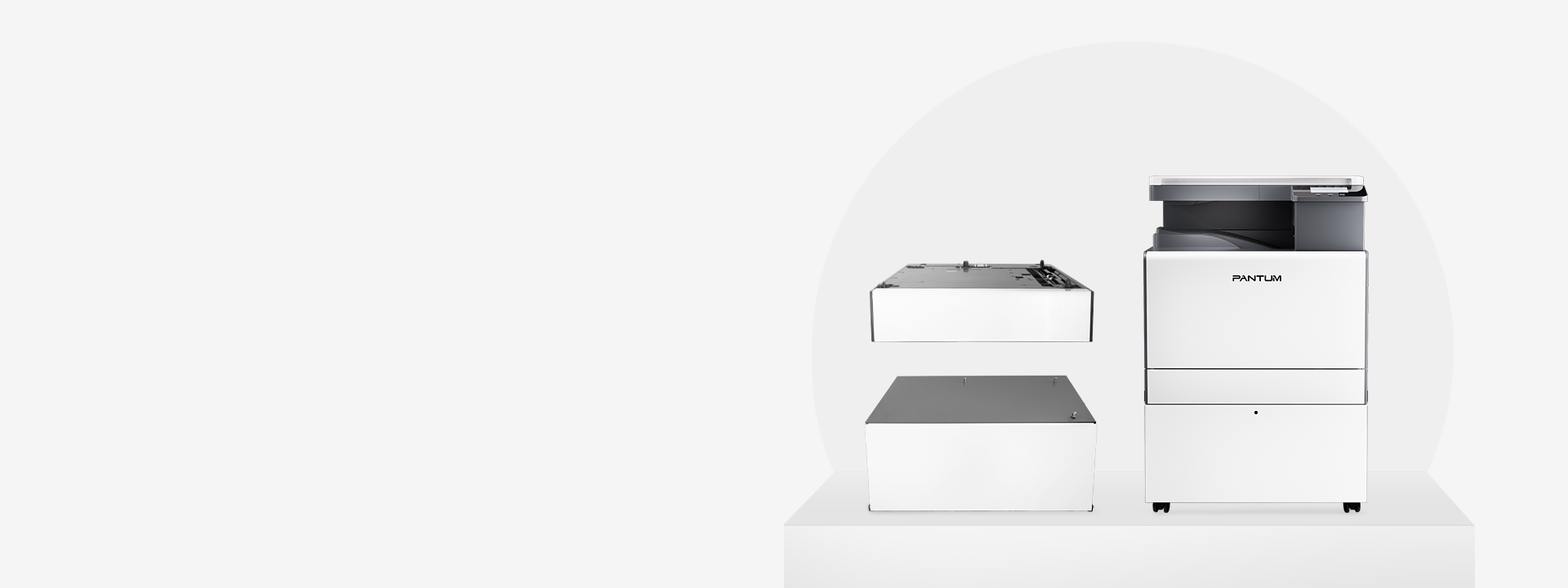

Upgrade your printing setup with versatile options, including up to two additional 550-page trays, a wheeled cabinet for storage, and separate Wi-Fi functionality.

Product Specifications

Basic Information Print Copy Scan Accessories

General

Control panel	4.3 inch touch screen
Processor Speed	1.0 GHz
Memory	2GB
Flash memory	32GB EMMC
Recommended Monthly Page Volume	4000 pages/month
Maximun Monthly Duty Cycle	60000 pages/month
Connectivity	USB3.0(compatible with USB2.0) IEEE 802.3 10/100/1000Base-Tx Wi-Fi(2.4G/5G)IEEE 802.11a/b/g/n (Option)
Power	110V:AC100-127V(±10%),50/60Hz(±3Hz),12A 220V:AC220-240V(-15%,＋10%),50/60Hz(±3Hz),6A
Power Consumption	Run:under 1.1KW Ready:under 35W Sleep:under 1W Power off:under 0.5W
Energy Star Standards	Meets ENERGY STAR 3.2 standards
Noise	Print、Scan:less than 54dB(A) Copy:less than 57dB(A)
Operating Environment	Temperature:10-32℃ Humidity:20-80% Altitude: below 3000m

Paper Handling

Paper Input Capacity	Standard：250 pages， Multipurpose tray：100 pages Optional tray：550 pages（Maximum：2） Max: 1450 pages
Paper Output Capacity	250 page（A4 landscape）
Paper Output Full Detection	No

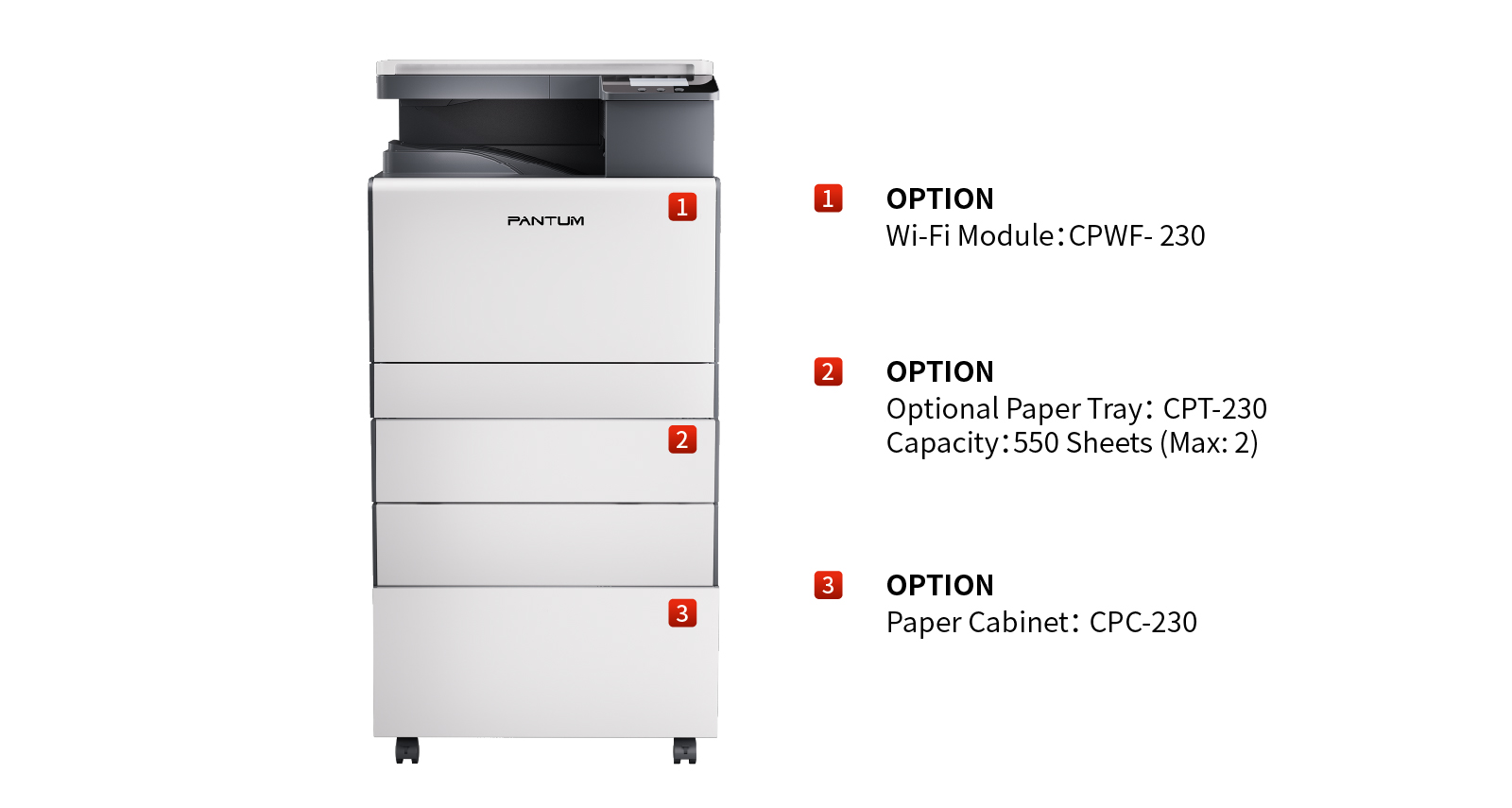

Options	CPT-230：550 pages（Maximum：2） CPC-230：Cabinet
Media Types(single-sided)	Plain paper(60-69gsm),Plain paper(70-90gsm), Recycled paper(60-90gsm), Thick paper:91-216gsm,Postcards, envelopes, label paper
Media Sizes(single-sided)	Standard Paper tray / optional paper tray:A3, A4, A5, JIS B4, JIS B5, ISO B5, 11"×17", LTR, 8K, 16K, Legal, Statement, executive, Folio, Oficio Multipurpose tray:A3, A4, A5, A6, JIS B4, JIS B5, ISO B5, 11" ×17", LTR, 8K, 16K, Legal,Statement, No.10 envelop, Monarch envelop, DL envelop, C5 envelop, C6 envelop, executive, Folio,Oficio, postcard Customize : Standard Paper tray:140180mm~297420mm Optional paper tray:140180mm~297432mm Multipurpose tray(Single-sided printing):95139.7mm~297432mm
Media Weights	Standard / optional paper tray:60-120g/㎡ Multipurpose tray:60-216g/㎡

Consumable

Consumable Type	Toner Cartridge & Drum Unit
Starter Consumables	Toner: CTL-2300K:3000 pages, CTL-2300Y:2000 pages CTL-2300M:2000 pages CTL-2300C:2000 pages Drum Unit:: CDL-2300K:60000 pages CDL-2300Y:60000 pages CDL-2300M:60000 pages CDL-2300C:60000 pages Waste Toner Bottle: CWT-2300:18000 pages
Customer Consumables	Toner Cartridge: CTL-2300K:3000 pages, CTL-2300Y:2000 pages CTL-2300M:2000 pages CTL-2300C:2000 pages High Capacity Toner: CTL-2300HK:15000 pages, CTL-2300HY:12000 pages CTL-2300HM:12000 pages CTL-2300HC:12000 pages Drum Unit:: CDL-2300K:60000 pages CDL-2300Y:60000 pages CDL-2300M:60000 pages CDL-2300C:60000 pages Waste Toner Bottle: CWT-2300:18000 pages

Packaging

Product Dimensions (WDH) (Not included Pallet)	630565572 mm(Machine) 630565707 mm(Machine＋Single-layer tray) 6305651007 mm(Machine+Single-layer tray+workbench) 630565842 mm(Machine+Double-layer paper tray) 6305651142 mm(Machine+Double-layer paper tray+workbench)
Package Dimensions (WDH)	769750806 mm(Pallet included)
Product Net Weight(kg)	Net weight without Supplies:52kg Net weight with Supplies:54.5kg
Product Gross weight(kg)	68.6kg(Packed with pallets)
Consumables Size (WDH)	K:4807188mm Y、M、C:4807188mm Drum unit:4657593mm Waste toner box:490159114mm
Consumables Packing Size (WDH)	K:522128120mm Y、M、C:522128120mm Drum unit:564185201mm Waste toner box:518175131mm
Net Weight of Consumables(kg)	High capacity K:709g±5g; Y、M、C:654g±5g; Low capacity K:434±5g Y、M、C:414±5g Drum unit:1592±5g Waste toner box:656±5g
Gross Weight of Consumables(kg)	High capacity K:1025g； FCL:10300g High capacity Y、M、C:975g ； FCL:9860g Low capacity K:750g； FCL:7825g Low capacity Y、M、C:700g ； FCL:7358g Drum unit:2224g:full container 9960g Waste toner box:994g:full container 4800g

Speed	25ppm
Duplex Print Speed	18ipm
First Print Out Time	Mono：7s Color：9.4s
Print Languages	PCL6、PS3、PDF
Duplex Printing	Automatic double-sided as standard
USB Disk Printing	Yes
Mobile Printing	Option：CPWF-230 Android/iOS APP、Airprint、Mopria
Operation System	Windows XP(sp3 and above)/Windows7/Windows8/Windows8.1/ Windows10/ Windows11/ Windows server/2008/2012/2016 Mac10.9/10.10/10.11/10.12/10.13/10.14/10.15/11/12/13/14/14.1/14.2/14.3 Ubuntu16.04、18.04、20.04、22.04 Debian 10.0/Centos 7(32/64 Bit)、Astra Linux Special Edition V1.6/Redhat 8.2.0 and above/ Centos 8.2(64 Bit)
Others	Password printing, Sample printing, U disk printing, Delayed printing, Paging seal

Copy

Copy Speed	25ppm
Duplex Copy Speed	14ipm
First Copy Out Time	Mono:10s Color:12s
Copy Mode	Text/Image, Image, Text, Automatic
Copy Resolution (max.dpi)	Max 600x600dpi
Copy Reduce / Enlarge Settings	25-400%
Maximum Copy Pages	999 pages
Others	ID copy, Mixed copying, Watermark copying, Booklet copying, Edge removal, Sample copying, Paging function, Interrupt copy

Scan

Scanning Technology	CIS
Scanner Type	Flatbed
Scan Mode	Color, Grayscale, Mono
Scan Resolution	Max:600x600dpi
Maximum Scan Size	Max:A3、11"×17"
Scan Destinations	Scan to PC, Email, SMB, FTP, USB
Scanning File Formats	Push scan to SMB，Email，FTP，U disk：TIFF，JPEG，PDF Push scan to PC(Windows/Mac)：TIFF，JPEG，PDF， OFD, BMP Pull scan to PC(Windows)：TIFF，JPEG，PDF ，OFD, BMP，PNG
Pantum Scanning Software	Yes
0thers	Scan Preview (Pull Scan), OCR (Pull Scan), Mixed Size Scan
