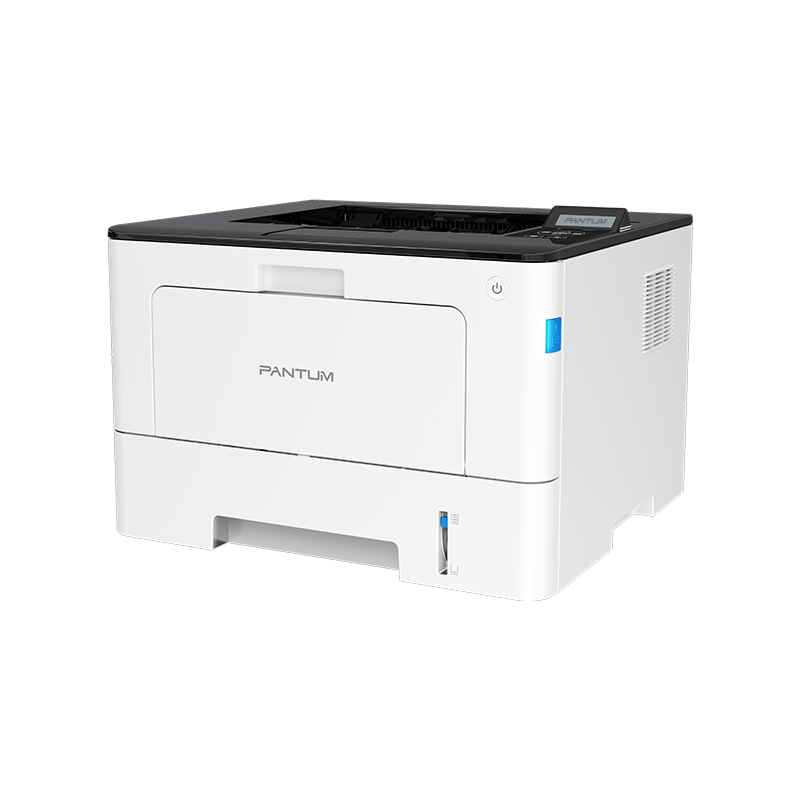

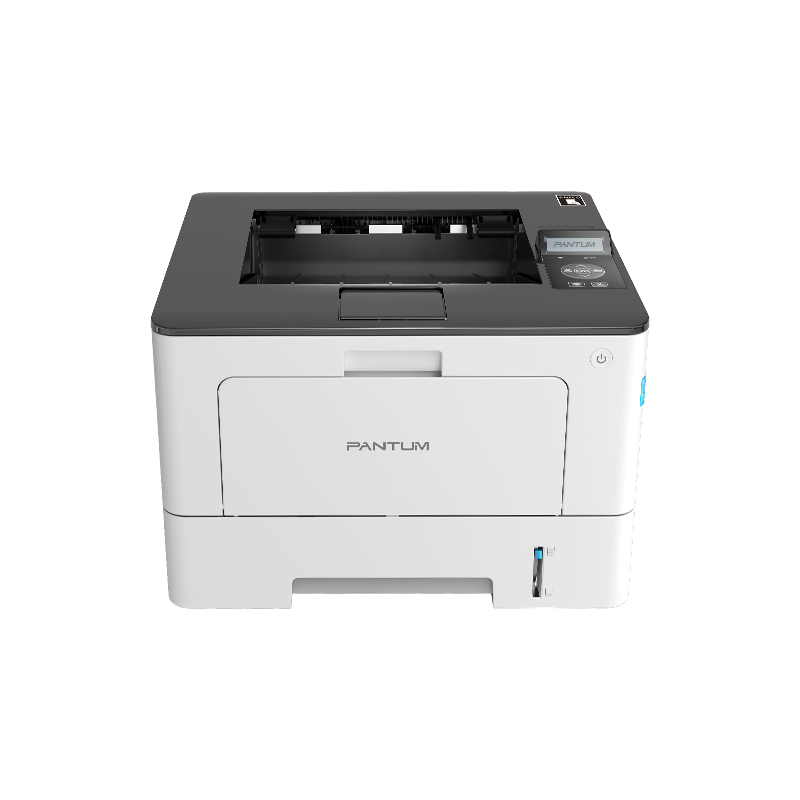

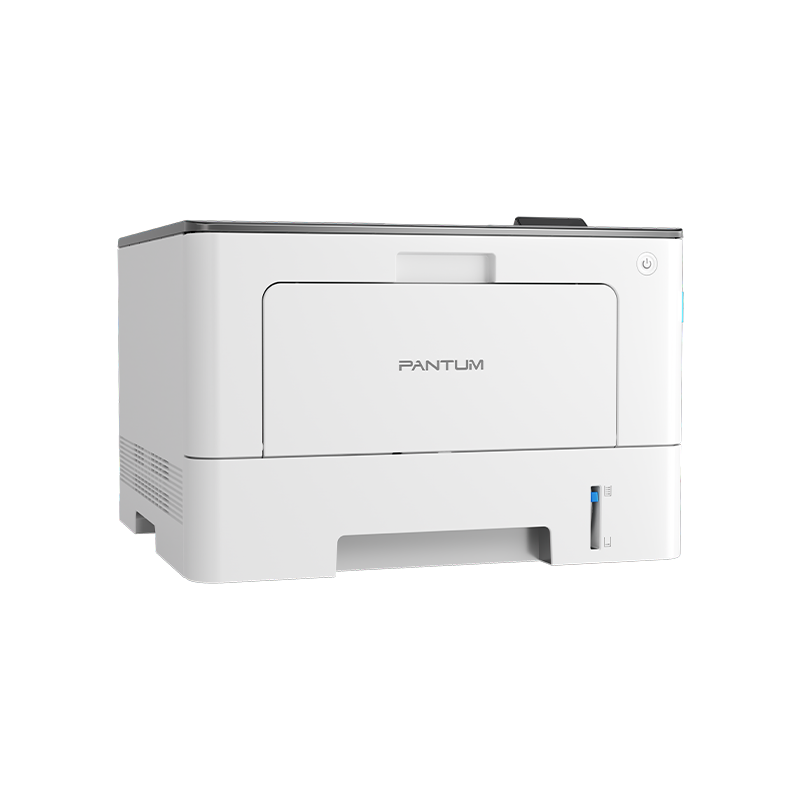

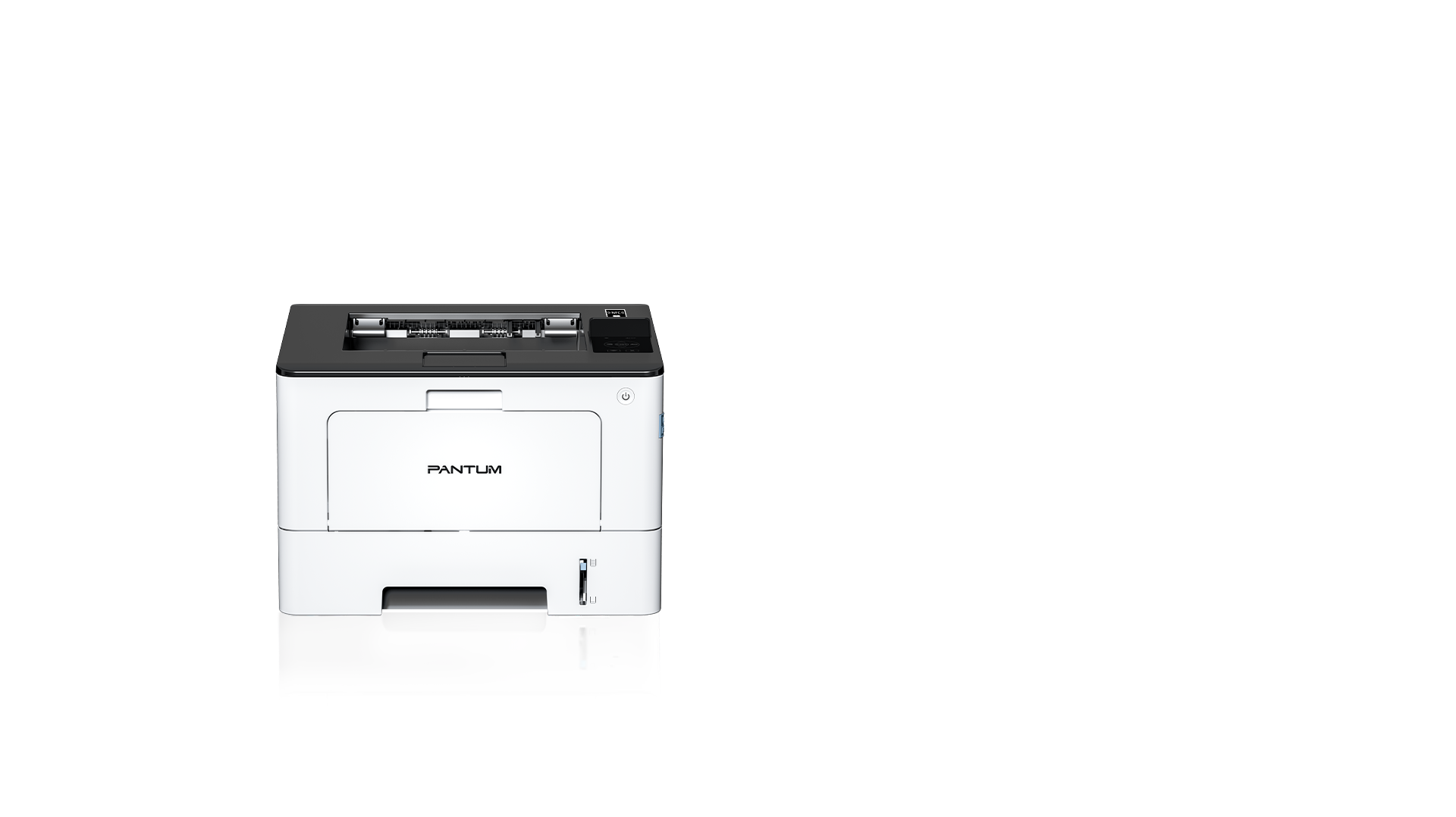

BP5200DW Mono laser single function printer

Printing speed: 42ppm
Connection method: USB+NET+WIFI
Basic function: Print
Special function:
-One step driver installation
-Automatic duplex printing
-Metal frame inside
-2*550 pages optional paper tray
-Optional 15,000 pages toner cartridge
-Dual-band WiFi(2.4G/5G) support
Other Product：

Select a product

BP5200DN

Product Brochure

Driver Download

Mobile Apps

FEATURES DETAILS CONSUMABLES SIMILAR PRODUCTS

BP5200DW

UNCOMPROMISING SAFETY, UNMATCHED EFFICIENCY

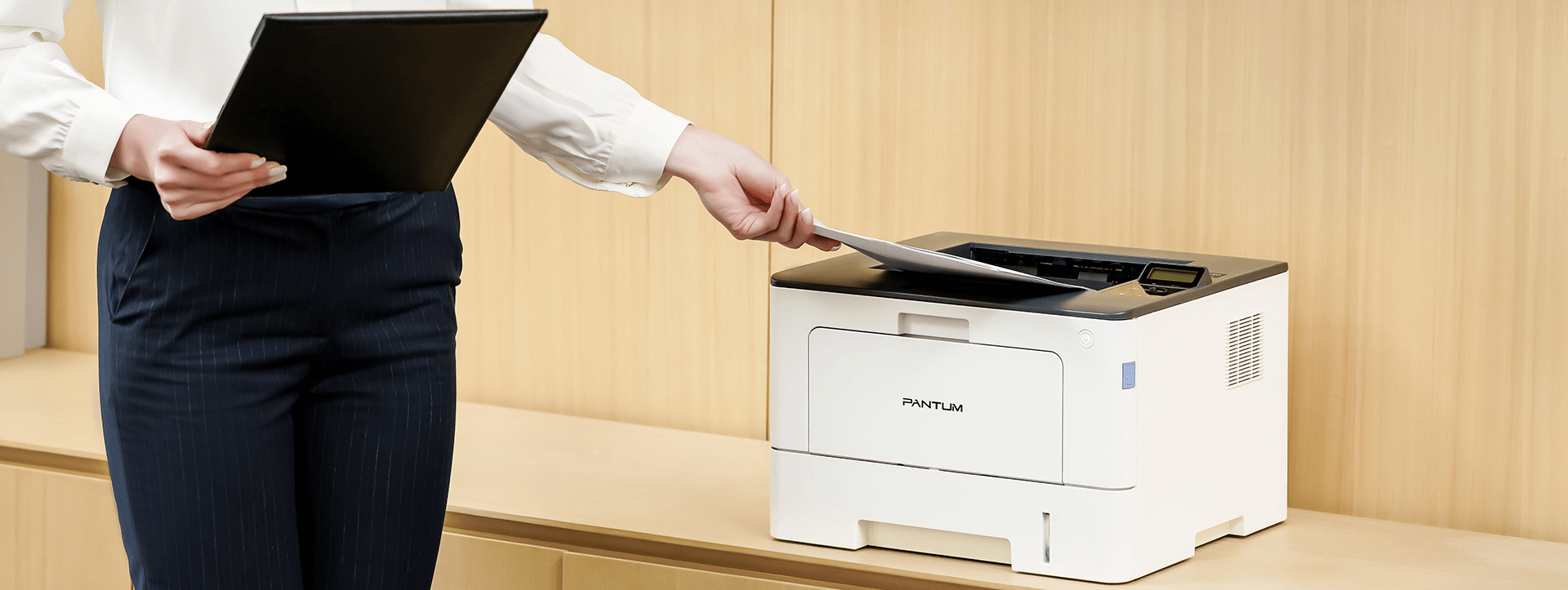

Accelerate Workflow with High-Speed Printing

With print speeds of up to 42 ppm (A4) / 70 ppm (A5L), the Elite Pro Series boosts productivity by delivering rapid output. The first page prints in just 5.9s, significantly reducing downtime.

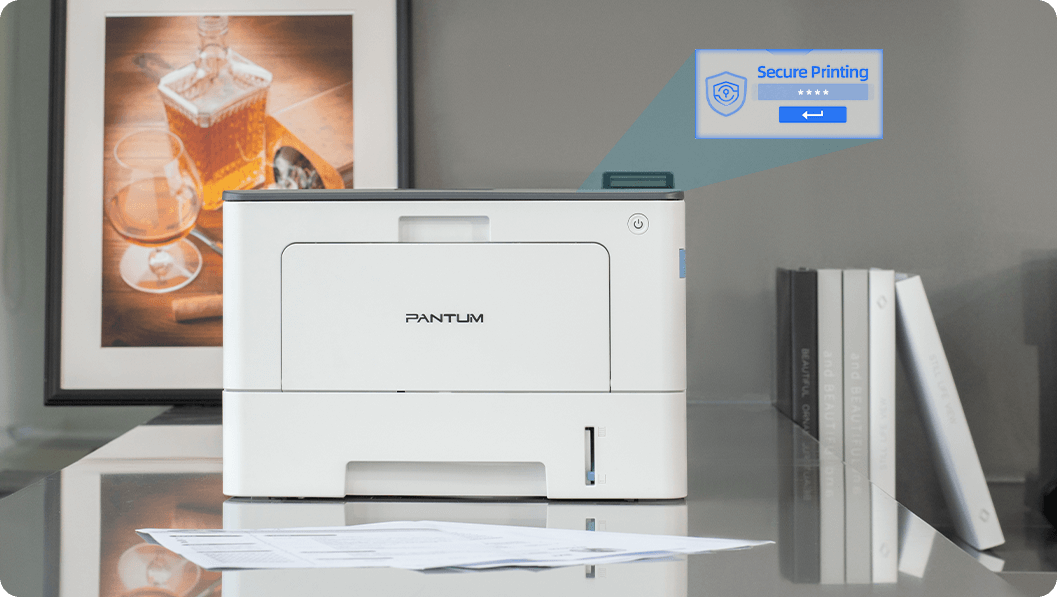

Safeguard Information with Advanced Data Security

Protect sensitive information with a 4-digit release code, ensuring that print jobs are only accessed by authorized users and preventing information leaks.

: 10s Quick Wi-Fi Direct Connectivity

Connect to the printer via Wi-Fi Direct in just 10 seconds, making it easy to print without needing an internet connection, ideal for quick and secure printing needs.

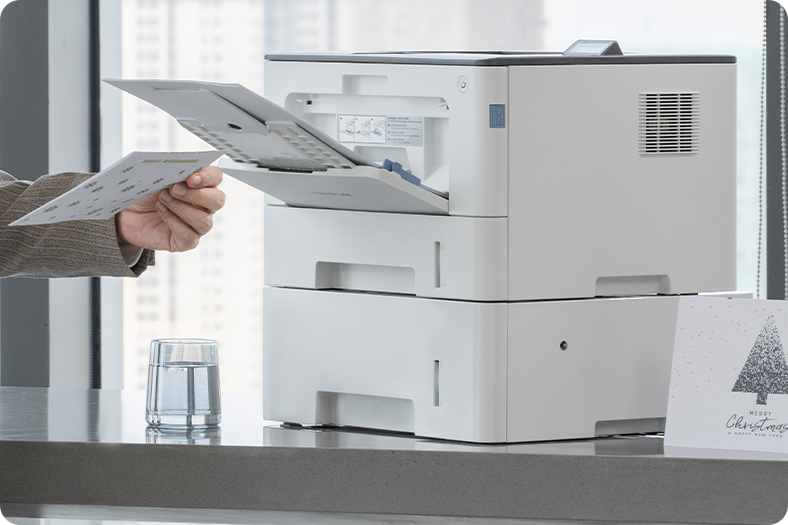

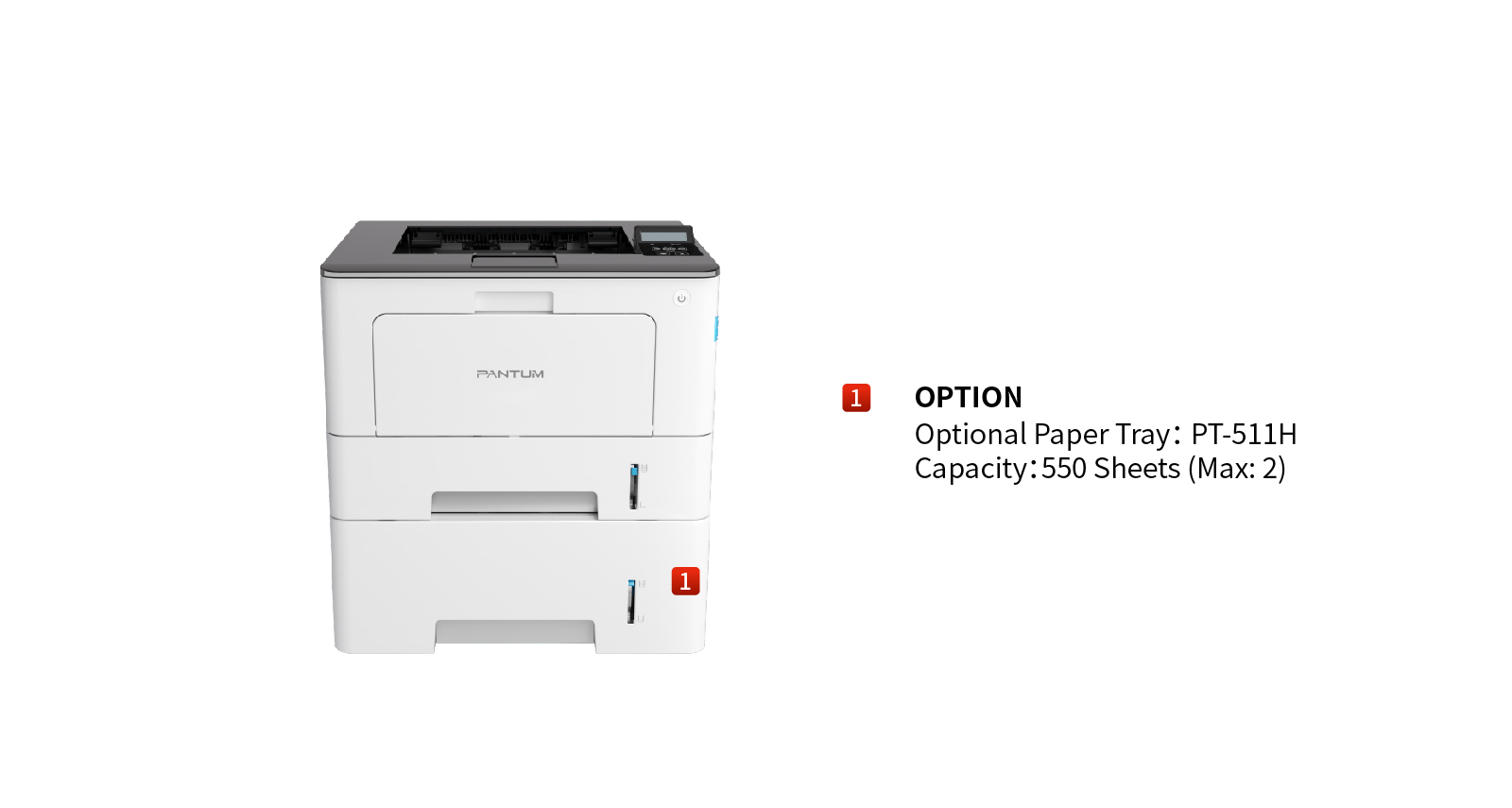

High-Capacity Paper Handling for Large Jobs

Accommodate extensive printing requirements with expandable paper handling options. Two optional 550-sheet trays bring the maximum paper feed capacity to 1,410 sheets, ensuring you’re prepared for a high volume of work.

Connectivity at Your Fingertips

Enjoy a variety of connection methods, including USB, Ethernet, and Wi-Fi, to meet your printing needs with enhanced security.
Simplify the Wi-Fi configuration process with Bluetooth, allowing the printer to be quickly identified and connected to your Wi-Fi network.
Experience reliable and fast printing with support for both 2.4GHz and 5GHz dual-band Wi-Fi, ensuring you can always find the best frequency band for your network.

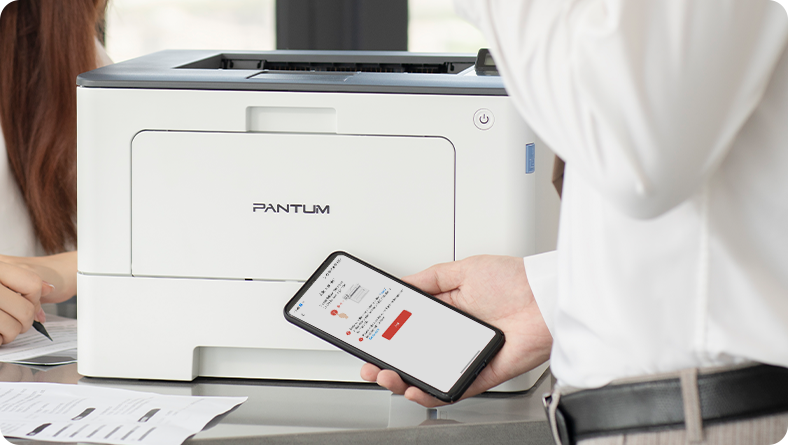

Additionally, print directly from your mobile phone using AirPrint and Mopria™ Print Service, without the need for a dedicated mobile app, making it incredibly easy to print files and photos from your iOS or Android device, wherever you are.

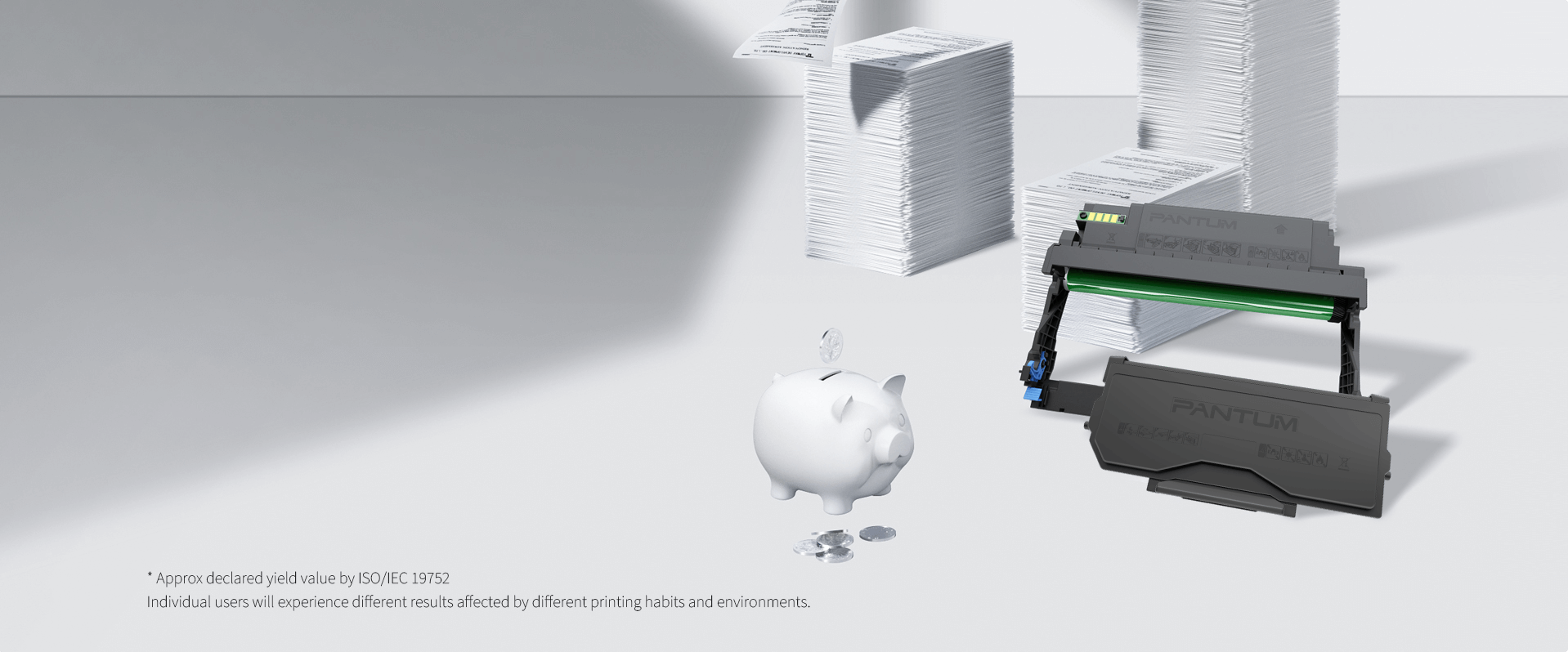

Cost-Efficient High-Yield Toner Cartridges

Handle large print volumes easily, thanks to high-capacity toner cartridges that can print up to 15,000* pages, reducing running costs and downtime.

Product Specifications

Basic Information Print Accessories

General

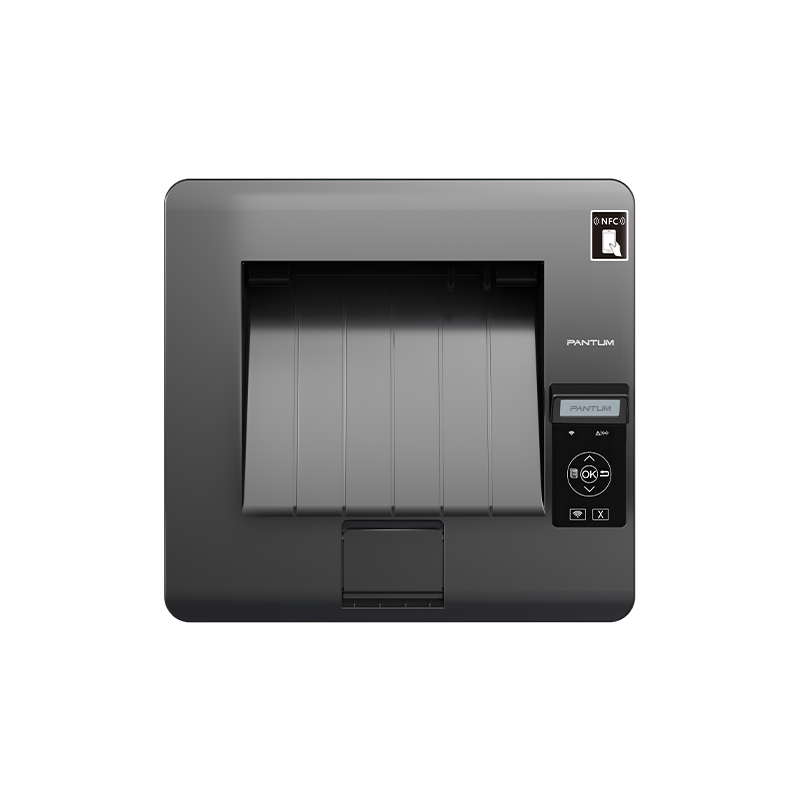

Control Panel	2 line LCD
Processor Speed	1.2G Hz
Memory	1GB
Hard Disc	NO
Recommended Monthly Duty Cycle	1000 to 10000 pages
Maximum Monthly Duty Cycle	100,000 pages
Interface	High-speed USB 2.0 IEEE 802.3 10/100/1000Base-Tx Wi-Fi (2.4G/5G): IEEE 802.11a/b/g/n+Bluetooth USB interface: rear USB DEV Bluetooth interface
Input Voltage	110V:AC110-127V, 50/60Hz, 12A 220V: AC220-240V, 50/60Hz,6.5A
Power Consumption	Print average:≤650W Ready:≤8W Sleep:≤1.4W Shutdown ≤0.5W
Energy Star Standards	Energy Star 3.2
Noise	Print:≤56dB(A) Ready:≤30dB(A) Mute:≤50dB(A)
Operating Environment	Recommended temperature:10～32℃ Basic used temperature:5～35℃ Humidity range:20% ～ 80% Altitude:≤3000m

Paper Handling

Paper Input Tray	Standard input tray: 250 pages; Multipurpose input tray: 60 pages; Optional tray: 550 pages (Maximum:2); Max input tray: 1,410 pages
Paper Output Tray	150 pages
Paper Output Full Detection	YES
Accessory	PT-511H (Optional tray 550 Pages -Maximum:2)
Media Type	1. Automatic paper feeder: plain paper, thick paper, transparent film, thin paper, recycled paper 2. Multi-purpose paper feeder: plain paper, thick paper, card paper, label paper, envelope, thin paper, extra thick paper 3. Optional paper tray: plain paper, thick paper, thin paper
Media Size	A4, A5, JIS B5, IS0 B5, A6, Letter,Legal,Executive,Folio,Oficio,Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2 Min size:80mm x 148mm Max size:216mm x 356mm
Media Weight	Input tray:60-120g/㎡ Multipurpose tray:60-200g/㎡ Optional tray:60-120g/㎡

Consumable

Consumable Type	Toner Cartridge & Drum Unit
Starter Cartridge	TL-*5220 (3,000 pages）
Starter Drum Unit	DL-*5220 （30,000 pages）
Standard Cartridge	TL-5220（3,000 pages） TL-5220H （6,000 pages） TL-*5220X （15,000 pages)
Standard Drum Unit	DL-*5220（30,000 pages）

Packaging

Printer Dimensions(WDH)	366350260mm
Package Dimensions(WDH)	452428333 mm
Printer Net Weight(kg)	9.3kg (With consumable )
Printer Gross Weight (kg)	11.2kg
Standard Consumable Dimensions(WDH)	Toner Cartridge: 330×447×331mm(3K/6K) 356×395×516mm(15K) Drum Unit: 361×362×506mm
Standard Consumable Package Dimensions(WDH)	Toner Cartridge: 344475375mm(3K/6K) 370423530mm(15K) Drum Unit: 375390520mm
Consumables Net Weight(kg)	Toner Cartridge: 0.67kg(3K) 0.78kg(6K) 1.05kg(15K) Drum Unit: 0.47kg(30K)
Consumables Gross Weight(kg)	Toner Cartridge: 1.11kg(3K) 1.17kg(6K) 1.56kg(15K) Drum Unit: 0.91kg(30K)

Print Speed	42ppm (A4 single-sided) 44ppm (Letter single-sided) 70ppm (A5 long edge single-sided) A5 short edge: 9ppm
Duplex print speed	20spm（A4）
First print out time	≤5.9s
Print Languages	PCL5e、PCL6、PS、GDI
Duplex printing	Auto
U-disk print	No
Mobile print	AirPrint，Mopria™ Print Service，Mopria Scan、APP print(iOS App/Android App)
NFC	YES (except IOS)
Operating system compatibility	Microsoft Windows： Server2008/Server2012/Server2016/2019/2022/XP/Win7/Win8/Win8.1/Win10/win11（32/64 bit） Mac OS：10.10~14.3 Linux Ubuntu 16.04/18.04/20.04/22.04/24.04/ Debian 10.0/Centos 7（32/64 bit,intel Processor）； Astra Linux Special Edition V1.6/Redhat 8.2.0/ Centos 8.2(64 bit,intel Processor) Android：8.0 and later iOSAPP：iOS 13 and later HarmonyAPP：support HarmonyOS 2-4、HarmonyOS NEXT
Other printing functions	Booklet printing, mute printing, envelope printing without wrinkles,confidential printing, PDF printing

Consumables

TL-A5220 Toner cartridge

3000 pages

TL-A5220H Toner cartridge

6000 pages

TL-A5220X Toner cartridge

15000 pages

DL-A5220 Drum Unit

30000 pages
