BM5100ADW Mono laser multifunction printer

Printing speed：40ppm
Connection method：USB+NET+WIFI
Basic function：Print、Copy、Scan
Special function：
-One step driver installation
-Automatic duplex printing
-2*550 pages optional paper tray
-Optional 15,000 pages toner cartridge
-One pass two side scanning
-Dual-band WiFi(2.4G/5G) support
Other Product：

Select a product

BM5100ADN BM5100FDN BM5100FDW

Product Brochure

Driver Download

Mobile Apps

FEATURES DETAILS CONSUMABLES SIMILAR PRODUCTS

BM5100ADW

Extraordinary Office Assistant, Offering Excellent Printing Experience

Automatic Duplex Printing, High-efficiency Output

A4 printing speed is 40 pages per minute, and it supports automatic duplex printing, which can easily improve work efficiency

Wireless Printing, Convenient Experience

Through dual-band Wi-Fi (2.4G and 5G), NFC touch connection and other methods, wireless printing can be easily realized, and free office work style of users in the new era can be enjoyed

: One-step Driver Installation, A USB data cable is provided with the printer

The driver can be installed in one step without complex procedure, helping user enjoy worry-free operations

Powerful Paper Input Tray, Supports Continuous Printing

A standard 250-page standard paper input tray, a 60-page multipurpose paper input tray and optional 2 * 550-page optional paper input trays enable the printer’s maximum input tray capacity up to 1410 pages, easily meeting continuous and high-volume printing needs

High-yield Toner Cartridge, be Cost-effective

Already configured 30,000-page drum unit and 3000-page toner cartridge, together with optional large capacity 3,000-page, 6,000-page and 15,000-page toner cartridge, can meet various printing needs and decrease the cost per page

Product Specifications

Basic Information Print Copy Scan Accessories

Paper Handling

Paper Input Tray	250 Pages

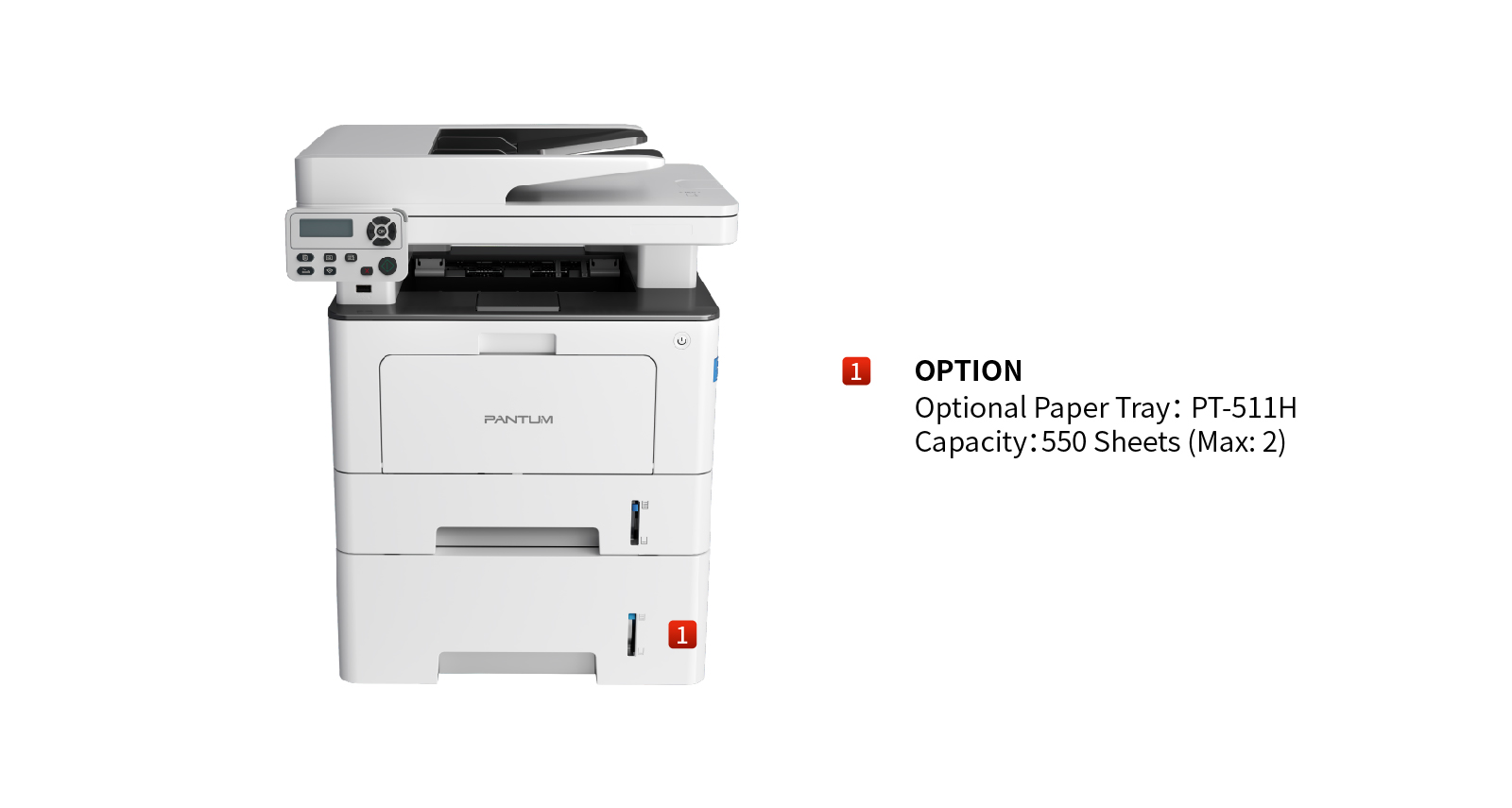

Optional Input Paper Tray	PT-511H,550 Pages(Maximum:2)
Multipurpose Tray	60 Pages
Maximum Paper Input Capacity	1410 Pages
Paper Output Tray	150 Pages
Media Weight	Input tray:60-120g/㎡ Multipurpose tray:60-200g/㎡ Optional tray:60-120g/㎡
Media Sizes	A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive, Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Media Types	Paper(plain, thick, thin,recycled),Transparency, Cardstock, Label, Envelope(3)

Note

(1)Toner capacity is based on ISO 19752.
(2)Drum unit lifetime is based on 3 average letter/A4-size pages per print job and 5% coverage,actual lifetime affected by different printing habits and printing environment.
(3)When you print envelopes, please set the printing paper type to envelopes, and open the rear cover of the device and pull down the two blue handles according to the prompts popped up by the driver, and put the envelopes into the multipurpose feeder to get the best envelopes print effect.

General

Dimensions(WDH)	415365370 mm
Product Weight(With Cartridge)	12.5kg
Package Size(WDH)	559444488 mm
Package Weight(With Cartridge)	14.7kg
Operating Temperature Range	Recommended temperature: 10～32℃ Humidity range:20% ～ 80%
Input Voltage	110V:AC100-127V, 50/60Hz,14A 220V:AC220-240V, 50/60Hz,7A
Noise	Ready≤30dB(A) Print≤54dB(A) scan≤54dB(A) copy≤57dB(A)
Power Consumption	Print average:≤650W Ready:≤60W； Sleep:≤1W
Interface	High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; Wi-Fi(2.4G/5G):IEEE 802.11a/b/g/n
Operating System Compatibility	Microsoft Windows: Server2008/Server2012/Server2016/XP/Vista/Win7 /Win8/Win8.1/Win10/Win11(32/64 Bit) Mac OS:10.8/10.9/10.10/10.11/10.12/10.13/10.14/10.15/11/12 Linux:Ubuntu 14.04/16.04/18.04/20.04 /22.04 /Debian 10.0/Centos 7(32/64 Bit)；Astra Linux Special Edition V1.6/Redhat 8.0/ Centos 8.2(64 Bit)

Consumable

Cartridge Style	Toner Cartridge & Drum Unit
Starter Cartridge(1)	TL-5120: 3000 Pages
Starter Drum Unit(2)	DL-5120: 30000 Pages
Standard Cartridge(1)	TL-5120: 3000 Pages TL-5120H: 6000 Pages TL-5120X: 15000 Pages
Standard Drum Unit (2)	DL-5120: 30000 Pages

Print Speed	40ppm(A4)/42ppm(Letter)
First Print Out Time	≤6.9s
Recommended Monthly Page Volume	1000 to 10000 pages
Monthly Duty Cycle(1)	100,000 Pages
Printer Language	PCL5e、PCL6、PS3
Processor Speed	1.2 GHz
Memory	512 MB
Control Panel	2line LCD
Duplex Print Speed	20spm（A4）/21spm（Letter）
Auto Duplex Print	Yes
Duplex Print Support Paper Size	A4\Letter\Legal\Folio\Oficio
Other Printing Functions	Booklet printing; Support AirPrint, Mopria™ Print Service, mobile APP(iOS APP/Android APP)
NFC Function	Yes
Print Resolution	Default 600 × 600 dpi, Max. 1200 × 1200 dpi¹ Note: ¹ Refers to image processing resolution
Note	(1)Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Pantum laser printer devices, and does not refer to actual maximum image output per month. Apple, AirPrint Mac and macOS are trademarks of Apple lnc., registered in the U.S and other countries.Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Mopria makes it easier to print and scan from your Android and Windows. For Android, Mopria™ Print Service and Mopria Scan are available for installation in the Google Play™ store.If you want to get more information, please visit https://www.mopria.org The Mopria™ wordmark and the Mopria™ Logo are registered and/or unregistered trademarks of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.

Copy

Copy Speed	40ppm(A4)/42ppm(Letter)
First Copy Out Time	Flatbed:less than 10s ADF:less than 11s
Copy Resolution (Max.dpi)	Max 600×600 dpi
Maximum Copy Pages	99
Copy Reduce / Enlarge Settings	25%~400%
Copy Special Features	ID copy, Receipt copy, N-up copy, Clone copy、Poster copy、Collated copy、Watermark copy

Scan

Scanner Type	Flatbed+DADF
ADF Capacity	50 pages
Scan Destinations	Scan to PC,E-mail,FTP,SMB,Thumb drive, APP(iOS/Android/iPad OS)
Scan Resolution	Flatbed: 75/150/300/600/1200 dpi ADF: 75/150/300/600 dpi
Auto Duplex Scan	Yes
Scan Speed	24 ppm(A4)/48 ipm(A4) 25 ppm(Letter)/50 ipm(Letter)
Maximum Scan Size	Flatbed: 216×297 mm ADF: 216×356 mm
Color Scaning	Yes

Consumables

TL-5120 Toner cartridge

3000pages

TL-5120H Toner cartridge

6000pages

TL-5120X Toner cartridge

15000pages

DL-5120 Drum Unit

30000pages
