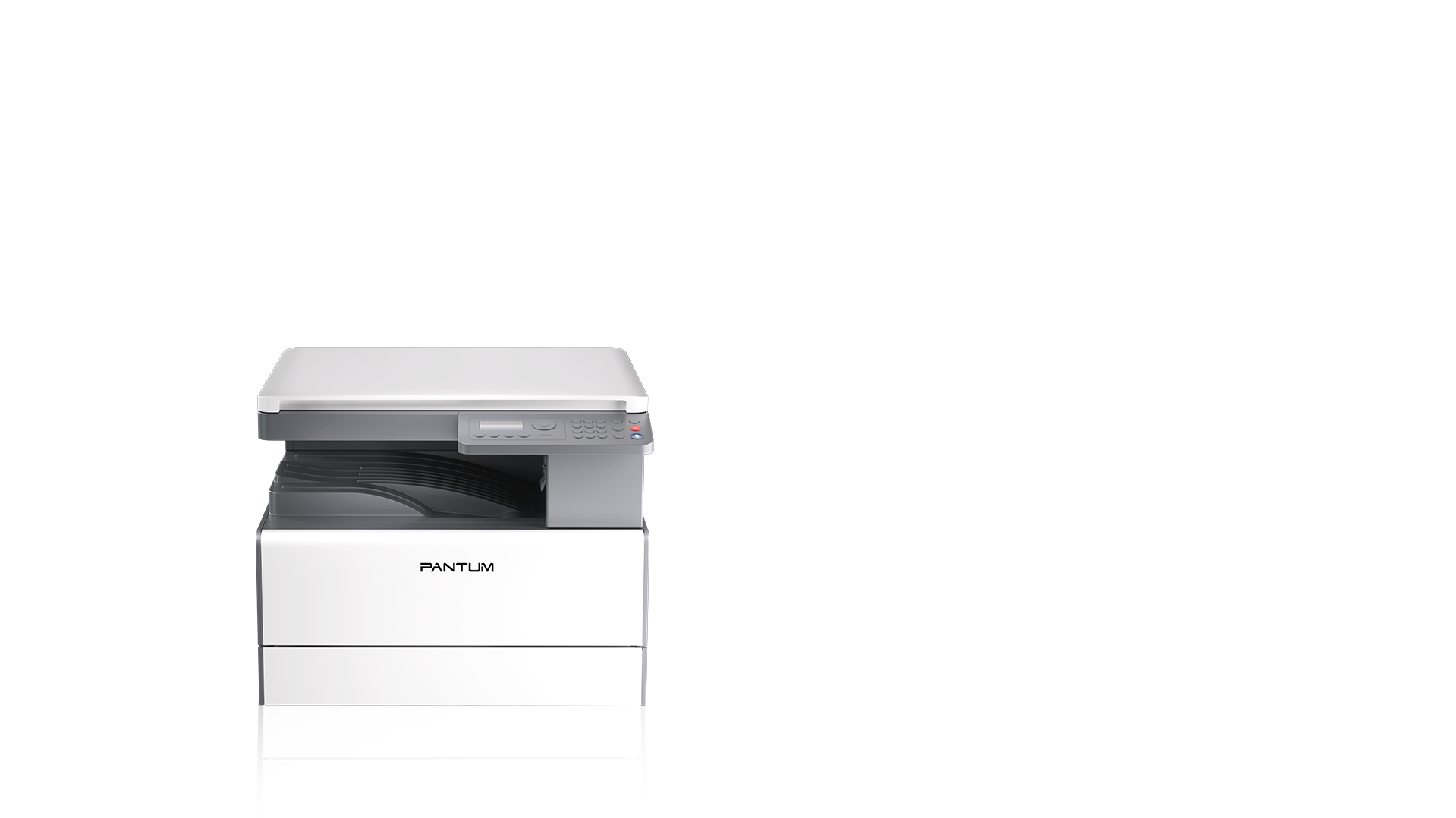

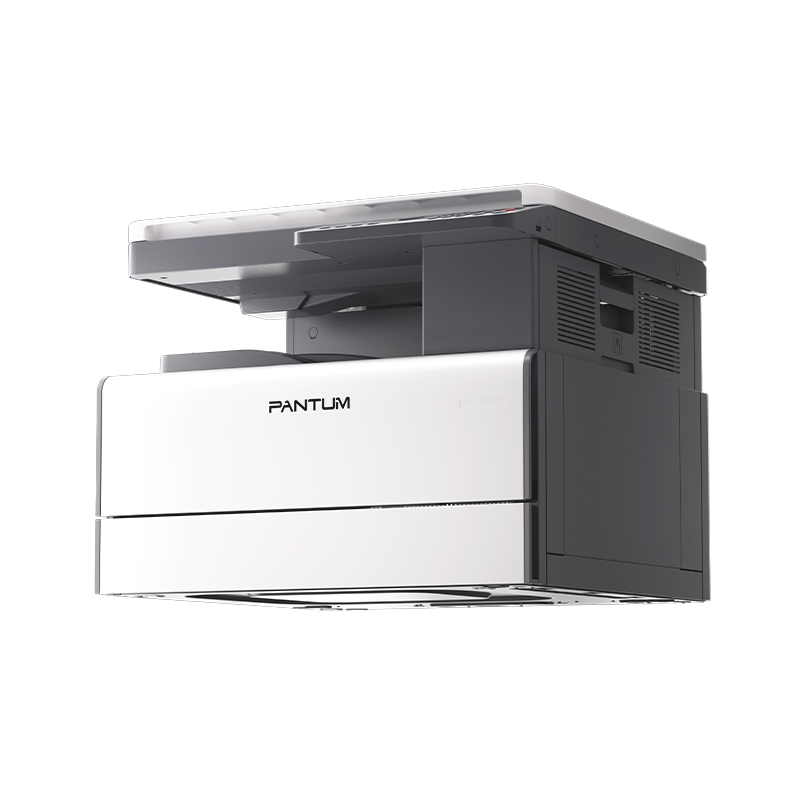

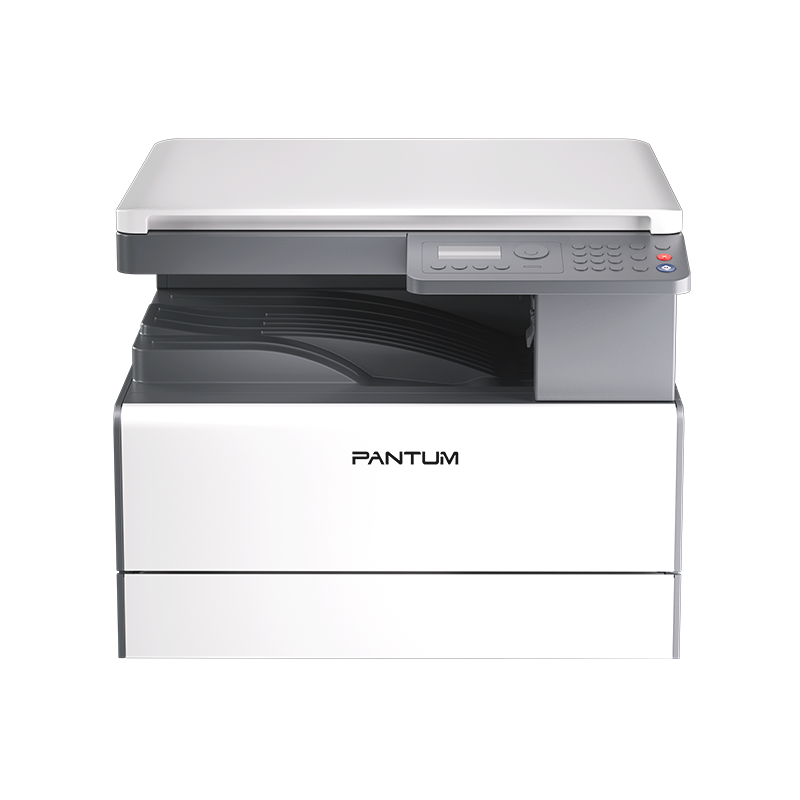

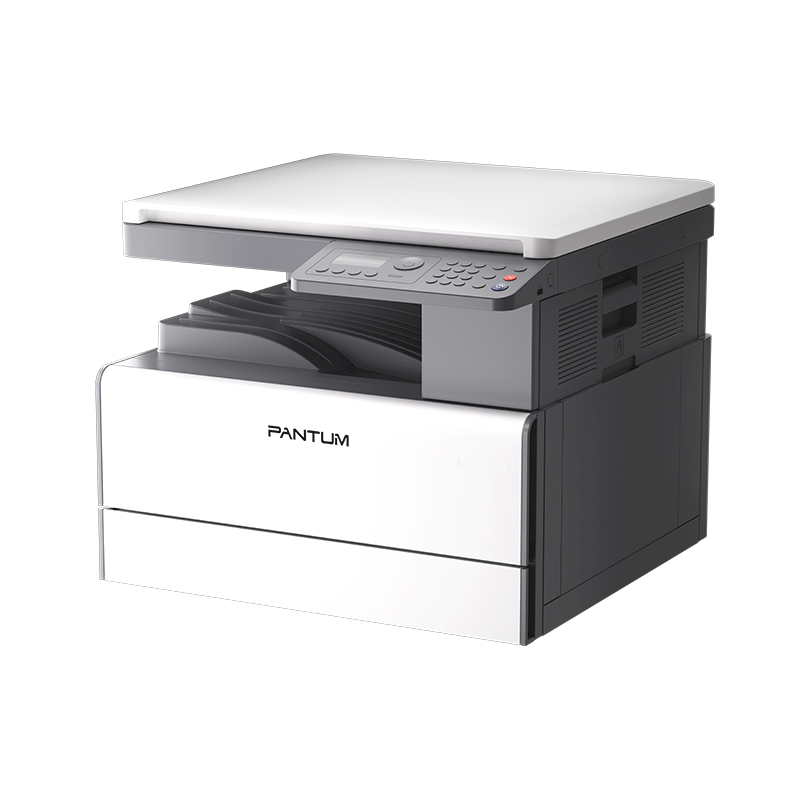

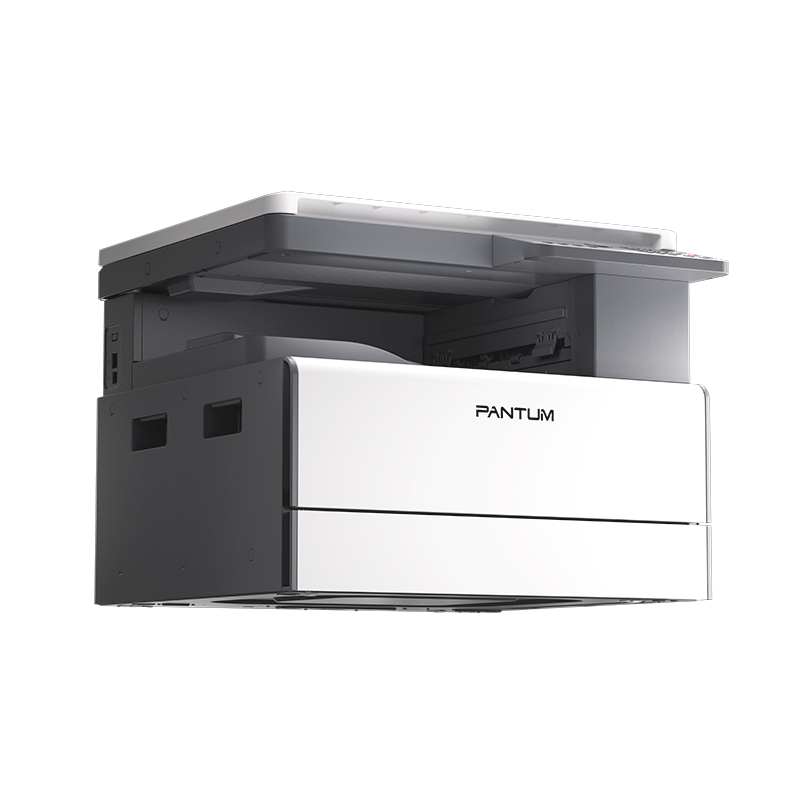

BM230N Mono laser multifunction printer- Utility Series

Printing speed：22ppm
Connection method: USB+NET
Basic function: Print、Copy、Scan
Print format：A3
Special function：
-Confidential Printing
-Maximum total capacity of 1450 pages
Other Product：

Select a product

BM230ADN BM320ADN

Product Brochure

Driver Download

Mobile Apps

FEATURES DETAILS CONSUMABLES SIMILAR PRODUCTS

BM230N

COST-EFFECTIVE AND PRACTICAL

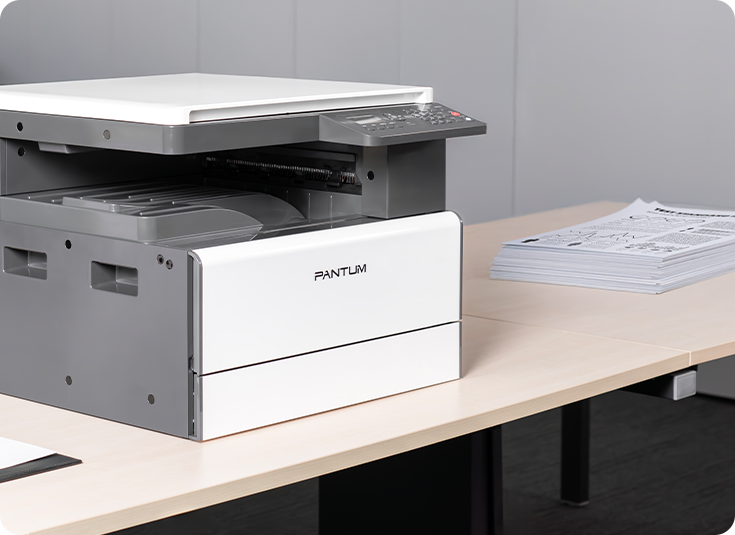

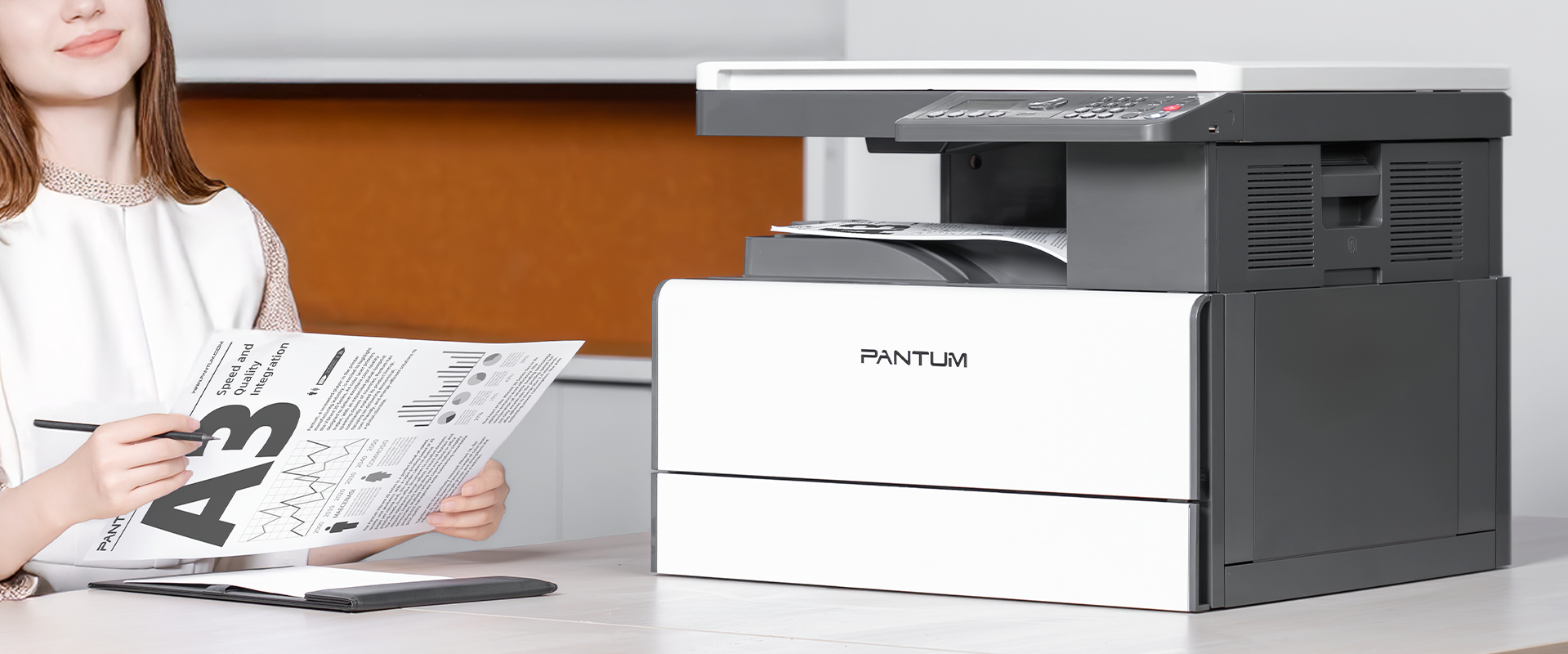

Boost Office Efficiency with Effortless A3 Document Handling

The printing speed and copy speed can up to 22ppm. Support for A3 paper sizes meets diverse office needs, ensuring all document types are handled efficiently.

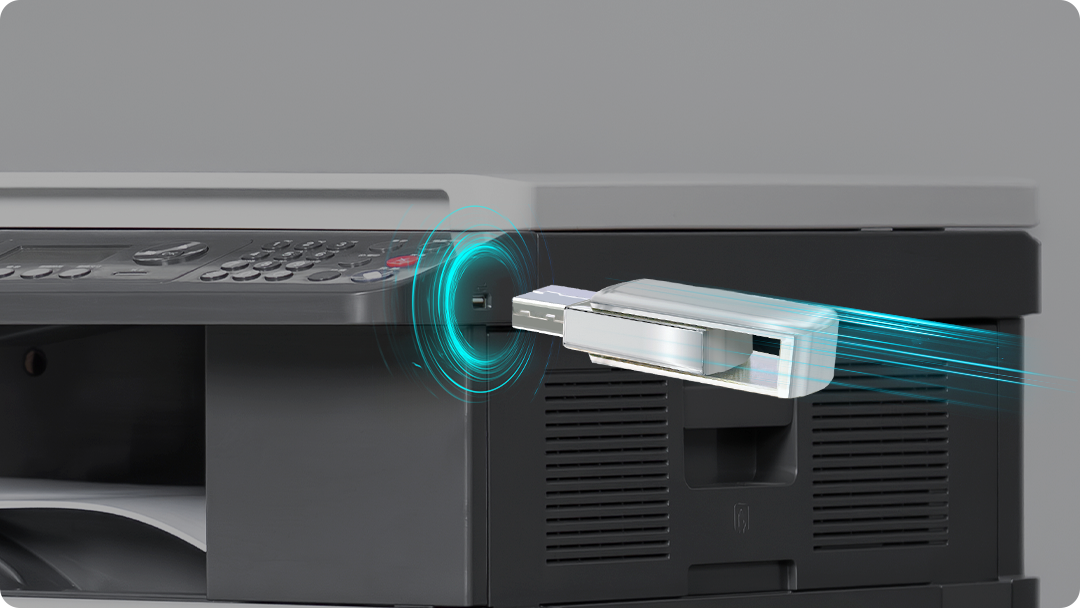

Convenient Scan to USB

Incorporate the convenience of scanning to USB flash drives, saving you time and boosting productivity.

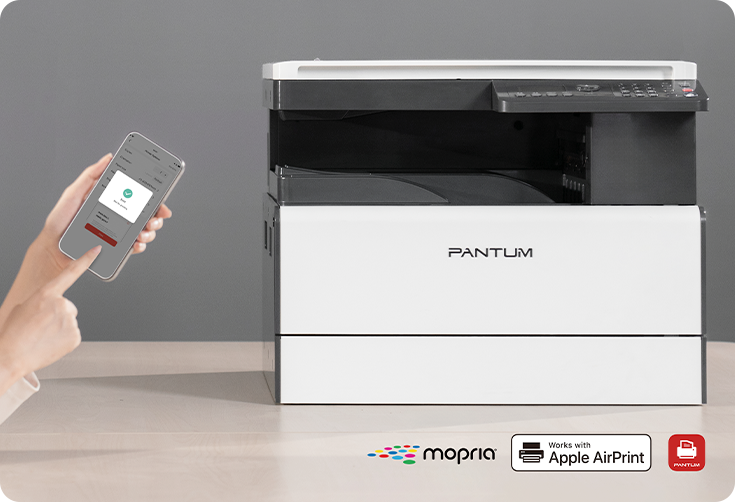

: Mobile Printing Made Easy

Support AirPrint, Mopria™ Print Service, Mopria Scan, and the Pantum APP, allowing seamless integration with your mobile devices for efficient, on-the-go printing. Ensure you can stay productive and responsive in any situation.

*The mobile printing function requires the installation of a Wi-Fi module.
* Apple, AirPrint Mac and macOS are trademarks of Apple lnc., registered in the U.S and other countries. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.
* Mopria makes it easier to print and scan from your Android and Windows. For Android, Mopria Print Service and Mopria Scan are available for installation in the Google Play store. If you want to get more information, please visit https://www.mopria.org
The Mopria wordmark and the Mopria Logo are registered and/or unregistered trademarks of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited.

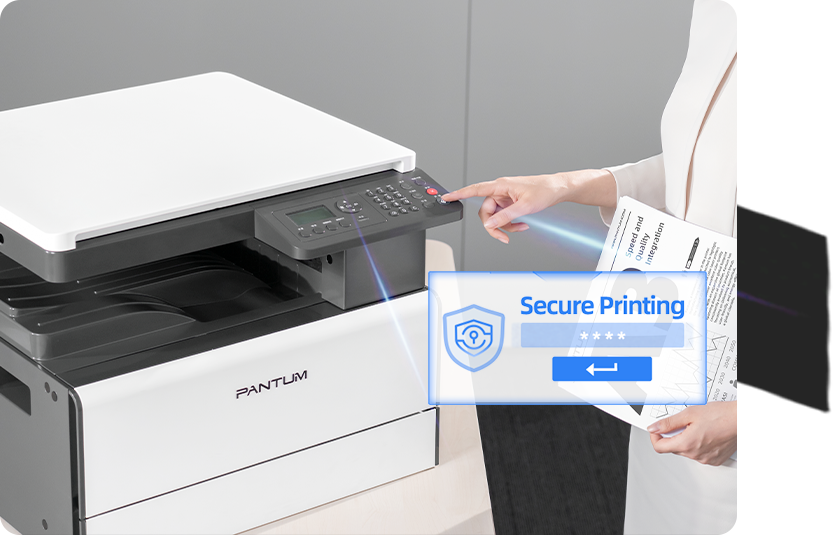

Secure Documents with Confidential Printing

Protect sensitive information with the secure printing feature, verified by authoritative vulnerability scanning tools.
This ensures that all confidential documents remain safe from unauthorized access, which is crucial for businesses handling sensitive data.

: Improved Efficiency with Versatile Paper Handling

Equipped with a 250-page standard tray and a 100-page multipurpose tray.
With a maximum total capacity of 1450 pages, your team can manage large print jobs with ease.

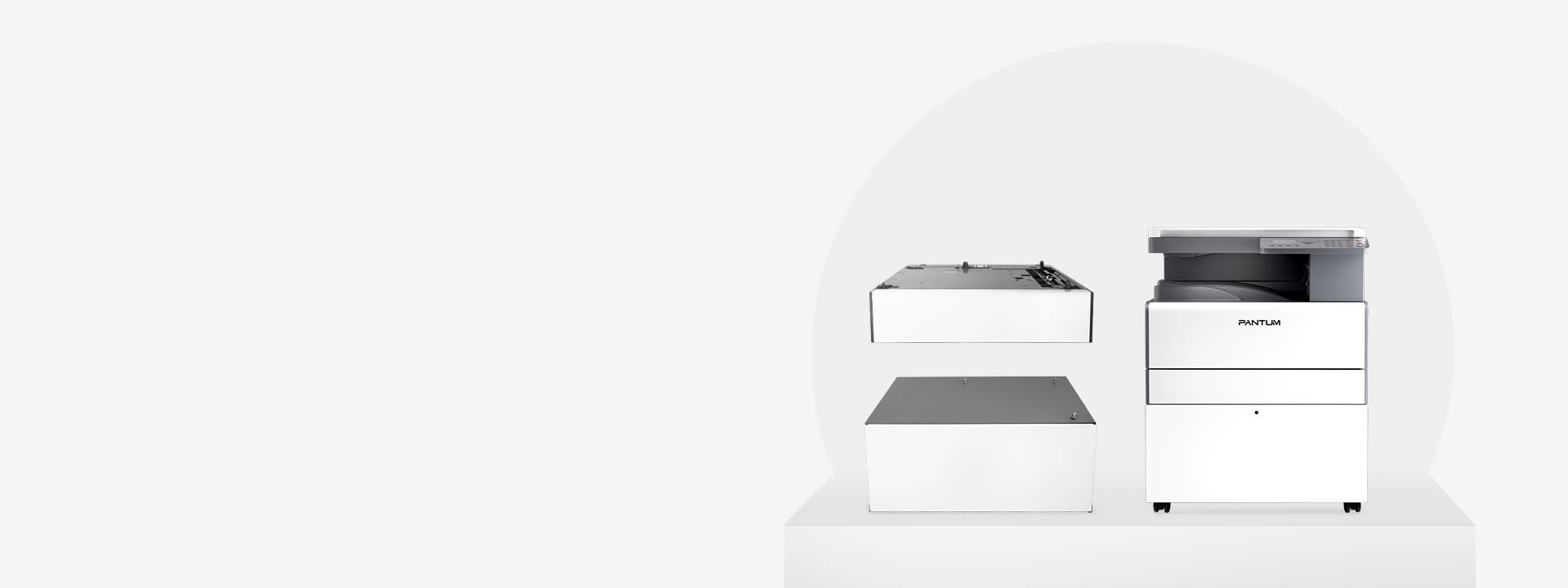

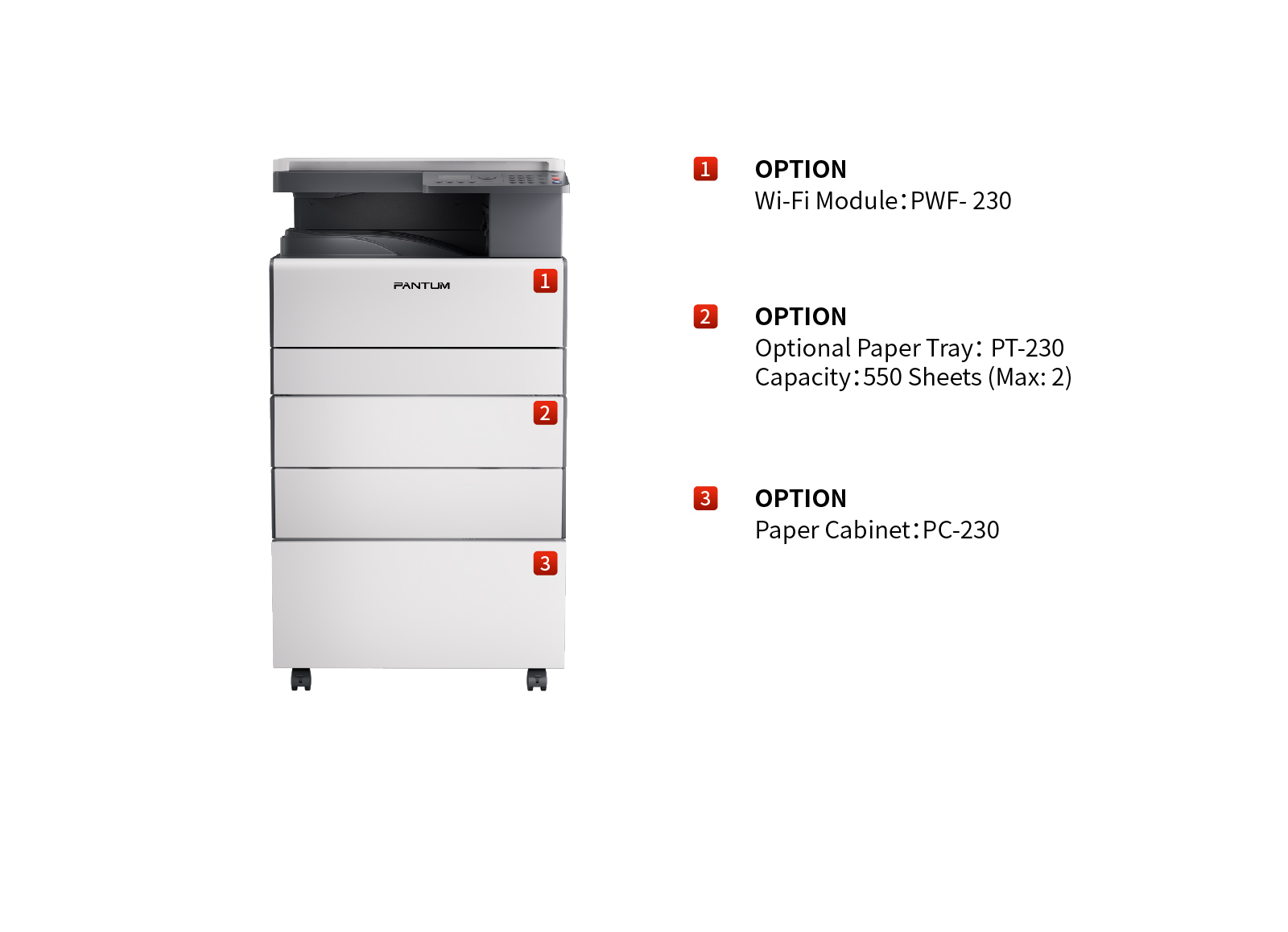

Customizable Options to Meet Your Needs

Upgrade your printing setup with versatile options, including up to two additional 550-page trays, a wheeled cabinet for storage, and separate WiFi functionality.

Product Specifications

Basic Information Print Copy Scan Accessories

General

Print Speed	A4:22ppm A3:12ppm
Control Panel	4 Line LCD
Processor Speed	833Mhz
Memory	DDR4/1GB
Flash Memory	/
Recommended Monthly Page Volume	4000pages/month
Maximun Monthly Duty Cycle	60000 pages/month
Connectivity	USB2.0 IEEE 802.3 10/100/1000Base-Tx WiFi（2.4G/5G）IEEE 802.11a/b/g/n （Option）
Power	110V Model：AC100-127V,50/60Hz,10A 220V Model：AC220-240V,50/60Hz，5A
Power Consumption	Average：under 550W Ready：under 80W Sleep：under 1W Power off：under 0.5W
Energy Star Standards	Meets ENERGY STAR 3.2 standards
Noise	Ready:less than30dB(A) Print、Scan:less than52dB(A) Copy:less than55dB(A)
Operating Environment	Temperature: 10-32℃ Humidity: 20-80% Altitude: China:below 2000m Other countries:below 3000m

Paper Handling

Paper Input Capacity	Standard:250 Pages Multipurpose tray:100Pages Optional tray:550Pages(Maximum:2) Max:1450Pages
Paper Output Capacity	250 pages(A4 landscape) 200 pages(A3,80g/㎡)
Paper Output Full Detection	No
Options	PT-230:550 pages(Maximum:2) PC-230:Cabinet PWF-230(Wi-Fi module)
Media Types(single-sided)	Tissue paper(60-69gsm),Plain pape(70-105gsm), Recycled paper(70-89gsm),Thick paper(106-216gsm),Postcards, envelopes, label paper
Media Sizes(single-sided)	Standard Paper tray: A3, A4, A5 ,JIS B4,JIS B5,ISO B5,11"×17", LTR, 8K, 16K, Legal,Statement, Folio, Oficio, executive Multipurpose tray:A3, A4, A5, JIS B4,JIS B5,ISO B5, 11"×17", LTR, 8K, 16K,Legal, Statement, Folio,Oficio, executive, postcard, No.10 Env (envelop),Monarch Env(envelop) ,DL Env (envelop),C6 Env(envelop),C5 Env(envelop), Customize( 120×130mm ~297.0×432.0mm Optional paper tra:A3, A4, A5, JIS B4,JIS B5,ISO B5, 11"×17", LTR, 8K, 16K, Legal,Statement, Folio, Oficio, executive
Media Weights	Standard / optional paper tray:60-120g/㎡ Multipurpose tray:60-216g/㎡

Consumable

Consumable Type	Toner Cartridge & Imaging Unit
Starter Consumables	Toner: TL-3200(3000 pages,locked) Imaging Unit: DL-3200 (80000 pages,locked)
Customer Consumables	Toner: TL-3200(3000 pages) TL-3200H(12000 pages) Imaging Unit: DL-3200(80000 pages)

Packing

Dimensions (WDH) (Not Included Pallet)	565593450 mm(Machine) 565593593.1 mm(Machine＋Single-layer tray) 565593893.1 mm(Machine+Single-layer tray+workbench) 565593731.6 mm(Machine+Double-layer paper tray) 5655931031.6 mm(Machine+Double-layer paper tray+workbench)
Package Dimensions (WDH)	620676790 mm(Pallet included)
Product Net Weight(kg)	Net weight without Supplies:27.8kg Net weight with Supplies:28.5kg
Product Gross Weight(kg)	40.8kg(Packed with pallets)
Consumables size(WDH)	K:440192123mm Imaging Unit:440100100mm
Consumables Packing size(WDH)	K:495235175mm Imaging Unit:480150150mm
Net Weight of Consumables(kg)	High capacity K:943g±5g; Standard capacity K:703±5g Imaging Unit:1744±5g
Gross Weight of Consumables(kg)	High capacity K:1530g； Full container:7750g(Including large outer box 1630g) Standard capacity K:1290g； Full container:6790g(Including large outer box 1630g) Imaging Unit:2124g: Full container:10126g(Including large outer box 1630g)

Speed	22ppm
Duplex Print Speed	/
First Print Out Time	Less than 8.5S
Print Languages	GDI
Duplex printing	Manual
USB Disk Printing	No（Scan to USB）
Mobile Printing	Option:PWF-230(Wi-Fi model) Android/iOS APP、Airprint、Mopria
Operation System	Windows7/Windows8/Windows8.1/ Windows10/ Windows11/ Windows server/2008/2012/2016/2022 (32/64 Bit) Mac10.10/10.11/10.12/10.13/10.14/10.15/11/12/13/14/14.1/14.2/14.3 Linux:ubuntu16.04、18.04、20.04、22.04/Debian 10.0/Centos 7(32/64 Bit)、Astra Linux Special Edition V1.6/Redhat 8.2.0and above/ Centos 8.2(64 Bit)
Others	Mixed Size Printing、Security printing,Brochure Printing,Border-free Printing、Automatic Print Selection,Printing automatically skips blank pages

Copy

Copy Speed	A4:22ppm A3:12ppm
Duplex Copy Speed	-
First Copy Out Time	9.5s
Copy Mode	Text/Image, Image, Text, Automatic
Copy Resolution (max.dpi)	Max600x600dpi
Copy Reduce / Enlarge settings	25-400%
Maximum Copy Pages	999 pages
Other Functions	Document copying, Bill copying, All-in-one copying, Watermark copying, Collate, Margin adjustment, Margin erase, Edge-to-edge scanning, Auto orientation

Scan

Scanning Technology	CIS
Scanner Type	Flatbed
Scan Mode	Color, Grayscale, Mono
Scan Speed	Manual
Duplex Scanning Speed	-
ADF Capacity	-
Scan Resolution	Max:600x600dpi
Maximum Scan Size	Max：A3、11"×17"
Scan Destinations	Scan to PC,Email,SMB,FTP,Usb disk
Scanning File Formats	Push scan to SMB,Email,FTP,U disk:TIFF,JPEG,PDF Push scan to PC(Windows/Mac):TIFF,JPEG,PDF, OFD, BMP Pull scan to PC(Windows):TIFF,JPEG,PDF ,OFD,BMP,PNG
Pantum Scanning Software	Yes
Others	Original skew, Auto crop, Hybrid scanning, Document scanning, OCR (pull scan)

Consumables

TL-3200 Toner Cartridges

3000

DL-3200 Drum Unit

80000

TL-3200H Toner Cartridges

12000
