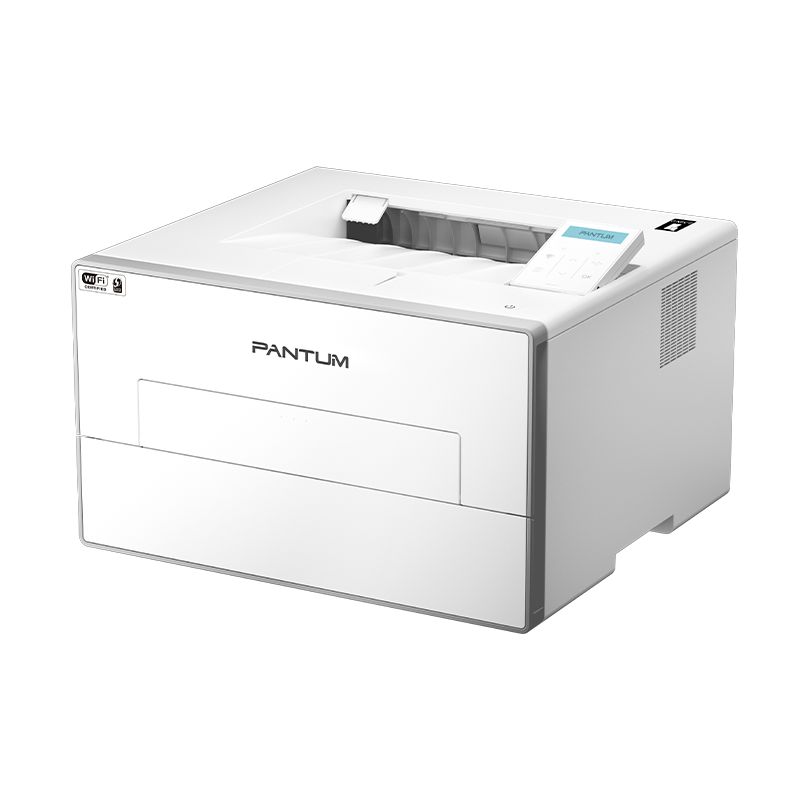

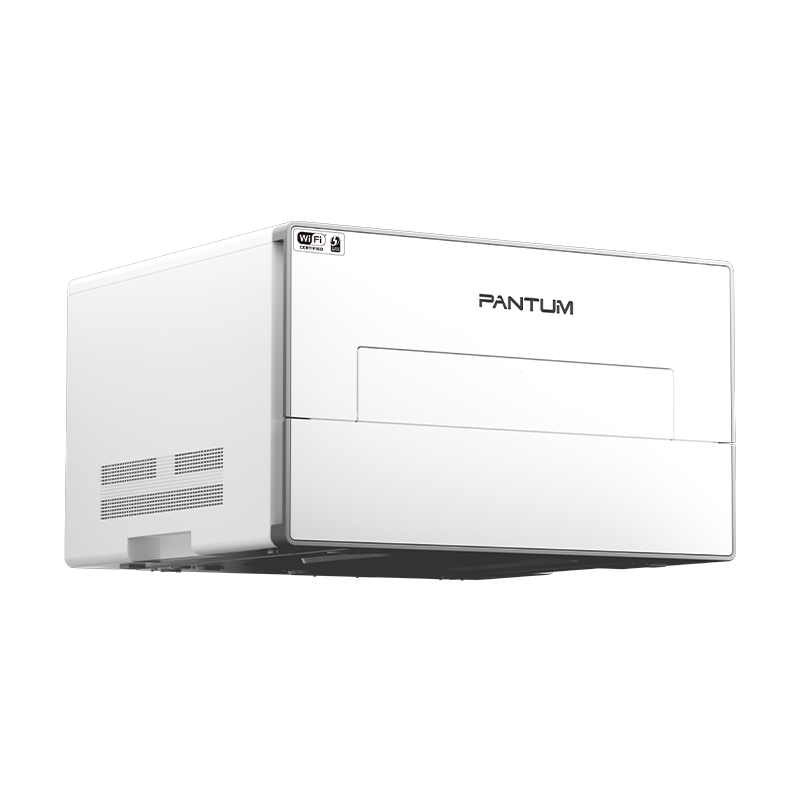

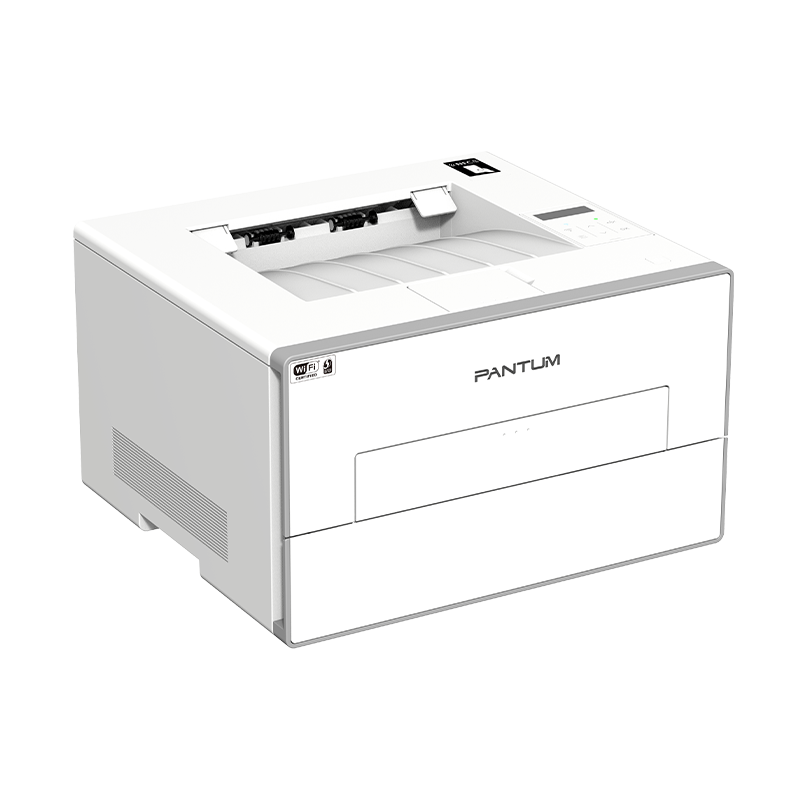

BP4200DW Mono laser single function printer

Printing speed: 33ppm
Connection method: USB+NET+Wi-Fi
Basic function: Print
Special function:
-Boosts efficiency with duplex high-speed printing
-Engineered for uninterrupted printing with lower paper jam
-Print with hotspot without network (Wi-Fi model only)
-Maximum toner yield up to 11,000 pages
Other Product：

Select a product

BM4200DW BP4200DW BP4200DN

Product Brochure

Driver Download

Mobile Apps

FEATURES DETAILS CONSUMABLES SIMILAR PRODUCTS

BP4200DW

Durable High-Speed Printing with Reliable Performance

Quick and Easy Setup

Experience fast setup with one-step installation, getting you ready to print in no time

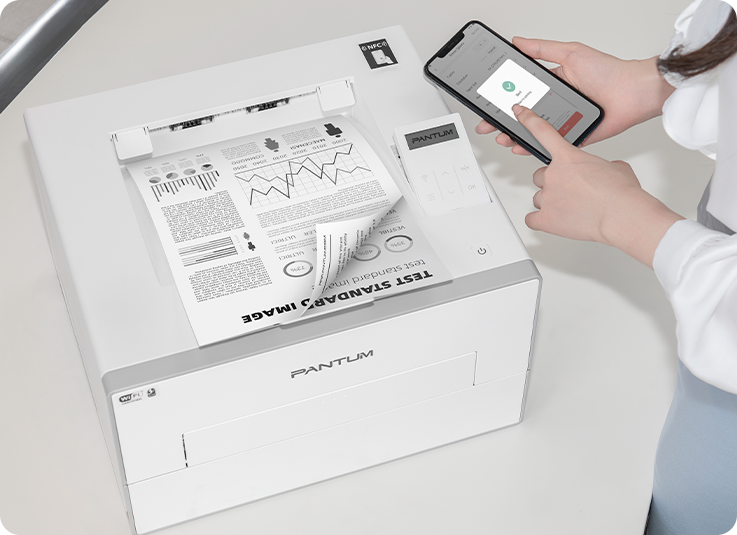

Instant 10s Wi-Fi Direct Connection

Connect to the printer in just 10 seconds via Wi-Fi Direct. Simply connect to the printer's hotspot and start printing without needing an internet connection. Perfect for meeting various printing needs in the office, during meetings, or for emergency use at home.

High-Speed and Auto-Duplex Efficiency

Boost your productivity with the Pantum Efficient Pro series swift printing speeds of up to 33 ppm (A4) / 35 ppm (Letter). Enjoy the convenience of automatic duplex printing, save paper and costs, and meet the needs of demanding office environments.

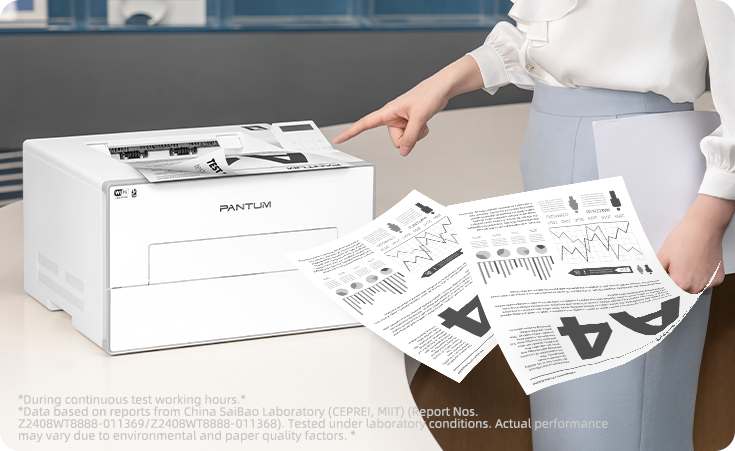

: Continuous printing of up to 200,000 pages, Jam rate below 0.02‰

Engineered with an upgraded fuser and paper handling unit, the printer can handle continuous printing of up to 200,000 pages with an exceptionally low paper jam rate of less than 0.02‰. This ensures a smooth and uninterrupted printing experience, even during high-volume jobs.

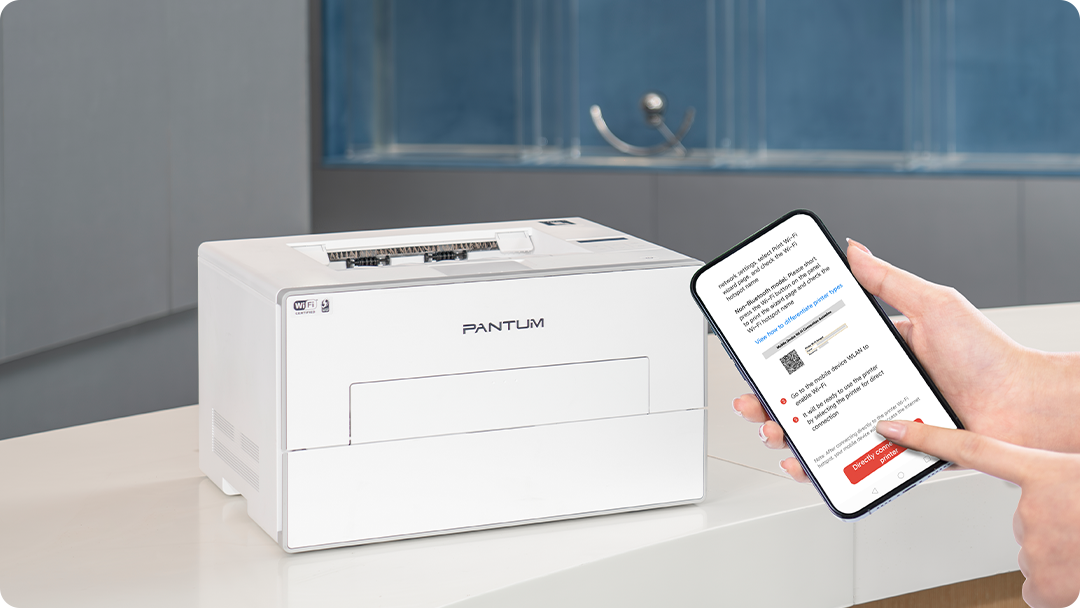

Connectivity at Your Fingertips

Enjoy a variety of connection methods, including USB, Ethernet, and Wi-Fi, to meet your printing needs with enhanced security. Simplify the Wi-Fi configuration process with Bluetooth, allowing the printer to be quickly identified and connected to your Wi-Fi network.

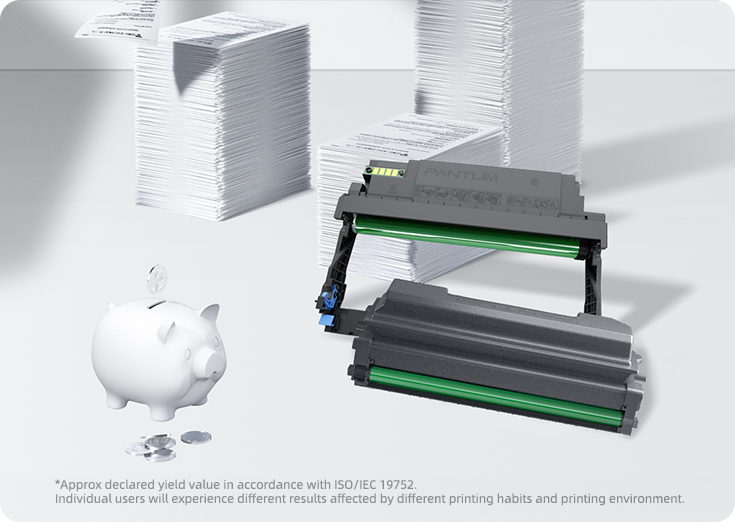

: 11,000 pages High-Capacity Toner for Cost-Effective Printing

The cost-effective, high-capacity toner cartridge can print up to 11,000 pages, offering a lower cost per page (CPP) compared to standard cartridges. This reduces the frequency of consumable replacements and minimizes labor costs, making it an economical choice for high-volume printing environments.

Product Specifications

Basic Information Print

General

Control Panel	2-line LCD
Processor Speed	800MHz
Memory	256M
Hard Disk	NA
Recommended Monthly Page Volume	1000~10000pages
Maximun Monthly Duty Cycle	80,000pages
Connectivity	USB2.0(High Speed)、IEEE802.3 10/100 Base-Tx Ethernet、IEEE 802.3az(EEE)、 2.4G/5G dual-band Wi-Fi (IEEE802.11a/b/g/n)、 Bluetooth
Power	110V model:100-127VAC,50/60Hz,9A 220V model:220-240VAC,50/60Hz,4.5A
Power Consumption	Print Average:≤525W Standby: ≤50W Dormant:≤1W Off:≤0.4w
Energy Star	Energy Star 3.0
Noise	Print:≤52dB(A) Standby:≤30dB(A)
Print Environment	Operating Temperature:10～32℃ Relative Humidity:20%~80%RH Altitude ≤2000m

Paper Handling

Paper Input Capacity	250 pages(A4:80g/m²)
Paper Output Capacity	120 pages(80g/m²)
Paper Output Detection	NO
Media Type	Plain, Thick, Transparency, Cardstock, Label ,Envelope,Thin,
Media Size	A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive , Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K,32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Media Weight	Standard tray:60-105g/㎡； Multipurpose tray: 60-200g/㎡

Packaging

Machine Dimension(WDH)	370 x 333 x 218mm
Machine Package Dimension(WDH)	441×413×311mm
Printer Net Weight	7.2kg(without starter cartridge)
Printer Gross Weight	9.7kg
Cartridge Dimension(WDH)	Toner : 28311652mm(3K) 28311665mm(6K) 28311696mm(11K) Drum unit:28219262mm
Cartridge Package Dimension(WDH)	Toner : 322108144mm(3K/6K) 322177144mm(11K) Drum unit:359106224mm
Cartridge Net Weight	Toner : 0.52kg(3K) 0.565kg(6K) 0.95kg(11K) Drum unit:0.45kg(25K)
Cartridge Gross Weight	Toner : 0.715kg(3K) 0.75kg(6K) 1.19kg(11K) Drum unit:0.725kg(25K)

Consumable

Consumable Type	Toner Cartridge & Drum Unit
Starter Toner Capacity(1)	TL-*4201:1500pages
Starter drum unit lifetime(2)	DL-*4201:25000pages
Standard Toner Capacity(1)	TL-4201H:3000pages TL-4201X:6000pages TL-*4201U:11000pages
Standard Drum Unit Lifetime(2)	DL-*4201:25000pages

Print Speed(A4/LTR)	33ppm(A4)、35ppm(Letter)、57ppm(A5 Long Edge)
Duplex Print Speed	15ipm
First Print Out Time	≤8.5s
Printer Language	PCL5e、PCL6、PS3、GDI、PDF1.7
Auto Duplex Printing	YES
USB Disk Printing	NO
Mobile Printing	Airprint、Mopria™ Print Service、Pantum APP、Wi-Fi Direct、NFC((iOS not support)
Operating System	WindowsServer2012/Server2016/Server2019/Server2022/XP/Wi n7/Win8.1/Win10/win11(32/64 Bit) Mac10.10～14 Ubuntu16.04、18.04、20.04、22.04; Chrome 99.0.4844.57 and 103.0.5060.114 and later Android 6.0-13.0 HarmonyOS 1.0-3.0 ios 13.0-17
Other Printing Functions	Brochure print poster print N-up print

Consumables

DL-A4201 Drum Unit

25000 pages

TL-A4201H Toner cartridge

3000 pages

TL-A4201X Toner cartridge

6000 pages

TL-A4201U Toner cartridge

11000 pages
